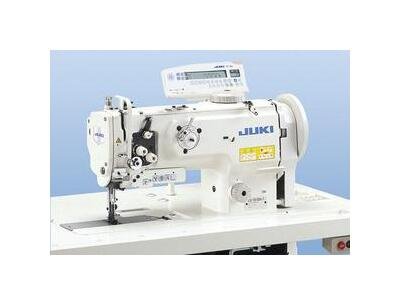

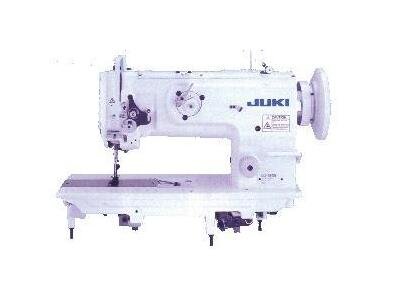

Juki LU-1508NH Heavy Duty Walking Foot Needle Feed Upholstery Sewing Machine
Juki LU-1508NH Heavy Duty Walking Foot Needle Feed Upholstery Sewing Machine
SKU:SEW-111078
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Juki LU-1508NH Heavy Duty Walking Foot Needle Feed Upholstery Sewing Machine
$49.99
Quantity: 1
Claim Your Seller Account
Juki LU-1508NH Heavy Duty Walking Foot Needle Feed Upholstery Sewing Machine
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

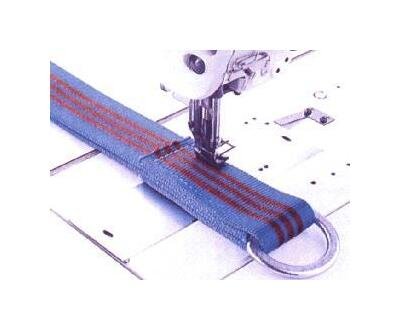

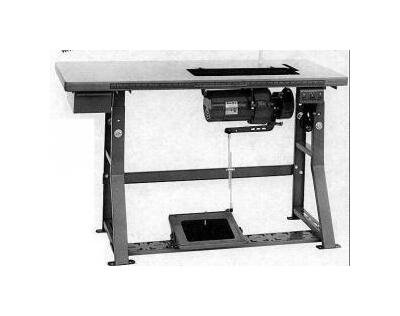

The H in 1508H means very heavy-duty, with longer stroke 190R Needles which allows for thicker fabrics and higher foot lift, a bigger hole in needle plate for thicker threads, and bigger teeth on the feed dogs which allow better feeding on thicker fabrics, etc compared to 1508N and 1541N that take shorter stroke 135x17 needles. N Stands for the Color: White H Stands for Extra Heavy-Duty 10-15% heavier duty than the Standard NS Version, with a longer needle and higher stroke. Note: Assembled Table , Stand and Motor. The very best heavy-duty compound feed, walking foot and needle feed machine for applications including auto upholstery. Single Needle Needle Feed And Walking Foot 2500 Stitches Per Minute New Rectangular Feed Prevents Gathering Includes Table, Stand, And Motor Handles Heavyweight Materials Industrial Sewing Machine The Juki LU 1508 replaces the very successful Juki 562/563 model, which was sold for over 20 years and is still is use with many manufactures. This new model has many new features which Juki has researched & tested thought-out the heavy-weight fabric industry. It is a general purpose needle feed, walking foot machine for use on medium-heavy weight materials and is suited to sewing, for example, car seats, carpets, general upholstery and leather articles etc.

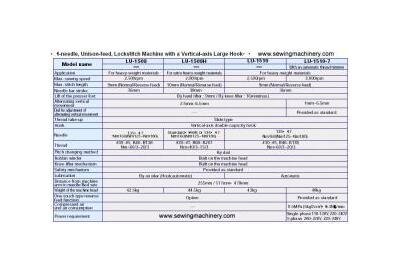

Product Specifications
Specifications Alternating Vertical Movement
2.5～6.5 mm
Specifications Brand
Juki
Specifications Features

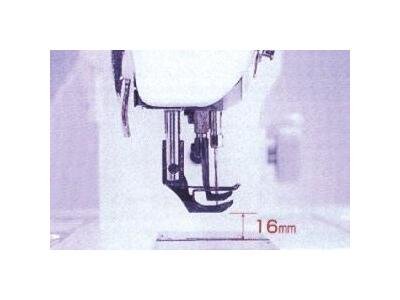

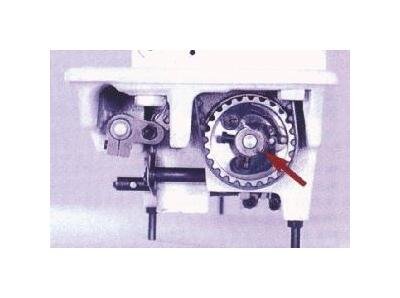

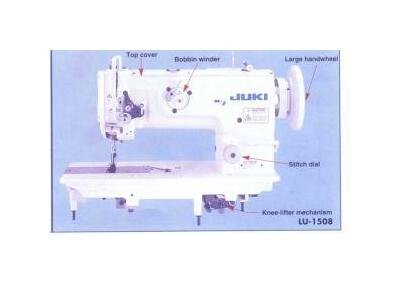

New mechanism with a rectangular feeding motion promises consistent feed of materials of all thickness without the risk of stitch gathering Reduced lift of feed dog helps prevent the material from flopping and reduces operating noise and vibration With adoption of a new rectangular feed mechanism, an alternating vertical movement mechanism and a unison feed mechanism helps feed heavyweight materials powerfully and smoothly Well tensed seams are consistently produced without pitch errors With its maximum stitch length of 9 mm, the machine can be applied to a broader range of uses Stitch length can be easily selected by the stitch dial Many improved features offer enhanced operability such as an easy-to-observe area around the needle, placement of bobbin winder on the front face, and a large hand-wheel Knee-lifter mechanism built-in to bed reduces pressure required to operate the knee-lifter Full-open-type top design makes it possible to fully open the top of the machine arm and helps make adjustment easy without tilting the machine head Alternating vertical movement mechanism prevents irregular stitches High 16 mm presser foot lift enables easy material handling Since machine incorporates a vertical-axis double-capacity hook, the frequency of bobbin thread replacement is reduced, further increasing efficiency If thread gets caught in the hook, the safety device is automatically engaged, preventing possible hook damage Pressing the reset button will immediately return the machine back to the normal state
Specifications Hook
Vertical-axis, Double-capacity Hook
Specifications Included Accessories

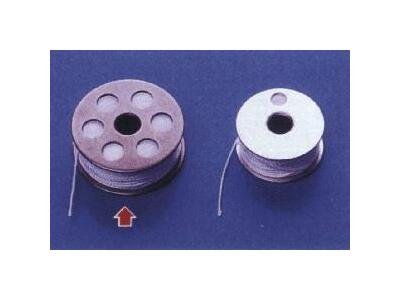

Juki B9117-563 Bobbin
Specifications Maximum Stitch Length
9 mm
Specifications Motor Type
Clutch Motor | Servo Motor
Specifications Needle Bar Stroke
36 mm
Specifications Option
Assembled Table | Knocked Down
Specifications Product Specifications
New mechanism with a rectangular feeding motion promises consistent feed of materials of all thickness without the risk of stitch gathering Reduced lift of feed dog helps prevent the material from flopping and reduces operating noise and vibration Compared with elliptical feed, rectangular feed helps reduce gathered stitches With adoption of a new rectangular feed mechanism, an alternating vertical movement mechanism and a unison feed mechanism helps feed heavyweight materials powerfully and smoothly Well tensed seams are consistently produced without pitch errors With its maximum stitch length of 9 mm, the machine can be applied to a broader range of uses Stitch length can be easily selected by the stitch dial Many improved features offer enhanced operability such as an easy-to-observe area around the needle, placement of bobbin winder on the front face, and a large handwheel Knee-lifter mechanism built-in to bed reduces pressure required to operate the knee-lifter Full-open-type top design makes it possible to fully open the top of the machine arm and helps make adjustment easy without tilting the machine head Alternating vertical movement mechanism prevents irregular stitches High 16 mm presser foot lift enables easy material handling Since machine incorporates a vertical-axis double-capacity hook, the frequency of bobbin thread replacement is reduced, further increasing efficiency If thread gets caught in the hook, the safety device is automatically engaged, preventing possible hook damage Pressing the reset button will immediately return the machine back to the normal state. #5;, B46 B138 Extra large steel handwheel with a diameter of 175mm Juki LU1508H Needle System SY3355 Juki Part No. MC-3720016-00 or generic 190R-Long Juki LU1508 Bobbin, Juki Part Number B9117-563-000, no generic available that we can find.
Specifications Thread
#30
Specifications Thread Take Up
Slide Type
Specifications Voltage
Default 110 V | Special Order 220 V
Specifications Warranty
Non-US Warranty: 30 days parts and labor | US Warranty 90 Days Labor on Defects in Materials and Workmanship
Specifications Weight
93.7 lb
