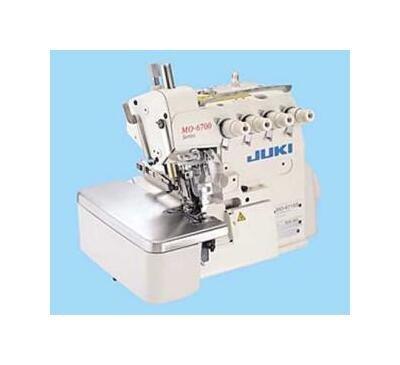

Juki MO-6704 S-OE4-40H 3-Thread Industrial Overlock Serger

Name: Juki MO-6704 S-OE4-40H 3-Thread Industrial Overlock Serger
Brand: Allbrands.com
SKU: SER-b01651
Price: 49.99 USD
Availability: OutOfStock

SKU:SER-b01651

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

See Juki MO6704-150 1.6 mm Dedicated Rolled Hem Merrow Stitch Edge, Industrial Overlock 3-Thread Serger MO-6704-150, 4:1 Differential Feed, Power Stand 7000 SPM, 100 Needles Since the machine comes with a needle-thread take-up mechanism as well as a looper thread take-up mechanism, to offer upgraded responsiveness from light- to heavy-weight materials with a lower applied tension, it achieves well-tensed soft-feeling seams that flexibly correspond to the elasticity of the material at the maximum sewing speed of 7,000 rpm The newly adopted upper and lower needle bar bushings of the needle bar mechanism improve both the durability and reliability of the needle bar unit. The machine comes standard with a cartridge type oil filter and cooling fan for further improved reliability and durability. Gauges and devices you have used with your existing JUKI machines are also interchangeable with no additional machining. This eliminates both the waste of resources and unwanted extra costs. This model available to be set up as exclusive and dedicated narrow rolled hem machine, Juki MO6704-150

Product Specifications

Specifications Brand

Juki

Specifications Differential Feed Adjusting Method

By Lever (with Micro-adjustment)

Specifications Differential Ratio

For Gathering 1:2 (Maximum. 1:4) | For Stretching 1:0.7 (Maximum. 1:0.6)

Specifications Inclination Angle Of The Needle

20 º

Specifications Included Accessories

Instruction Manual | Needles

Specifications Lubricating Oil

JUKI Machine Oil 18 (Equivalent to ISO VG18)

Specifications Lubrication

Automatic

Specifications Maximum Lift Of The Presser Foot

7 mm (Excluding Some Subclass Model)

Specifications Maximum Presser Foot Pressure

63.7 N | 6.5 kg

Specifications Maximum Sewing Speed

7,000 rpm

Specifications Micro Lifter

Provided as Standard

Specifications Motor Type

With Servo Motor | Without Servo Motor

Specifications Needles

DC27(Excluding Some Subclass Model)

Specifications Needle Bar Stroke

24.5 mm

Specifications Needle Cooler

Optional

Specifications Needle Mechanism

Needle Bar Method and Upper/Lower Bushing

Specifications Needle Thread Heat Remover

Optional

Specifications Overedging Width

1.6 mm | 3.2 mm | 4.0 mm

Specifications Stitch Adjusting Method

By Push-button

Specifications Stitch Length

0.8 mm | 4 mm

Specifications Stitch Style In The Usa

504

Specifications Stitch Types

1-Needle Overlock

Specifications Voltage

110 V | 120 V

Specifications Warranty

Non-US Warranty: 30 days parts and labor | US Warranty 90 Days Labor on Defects in Materials and Workmanship

Specifications Weight Of The Machine Head

28 kg
