K-Series 0.470" Open End Countersunk Head Rivet Nut
K-Series 0.470" Open End Countersunk Head Rivet Nut
SKU:KSE-deb180
High-quality 0.470" Open End Countersunk Head Rivet Nut for secure and durable fastening applications.
Regular price
$14.99
Regular price
Sale price
$14.99
Unit price
per
Initiate Order
K-Series 0.470" Open End Countersunk Head Rivet Nut
$14.99
Quantity: 1
Claim Your Seller Account
K-Series 0.470" Open End Countersunk Head Rivet Nut
$14.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

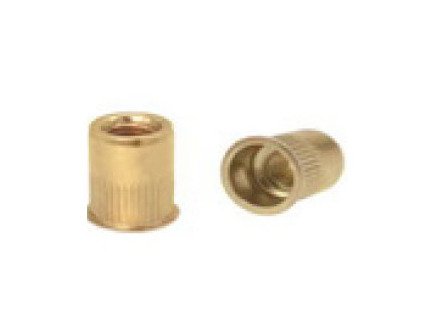

The K-Series 0.470" Open End Countersunk Head (AK) Rivet Nut by Ornit is a high-quality fastening solution constructed from steel with a yellow zinc plated finish. Designed with a #6-32 thread size, this rivet nut offers a precise fit with a minimum grip range of 0.080" and a maximum of 0.130". Its dimensions include 0.470" in length, 0.265" (d1), 0.310" (d2), and 0.019" (k). This rivet nut is versatile, also available in stainless steel and aluminum, with serration style options. Ideal for various applications requiring a reliable and durable fastening solution.
Product Specifications

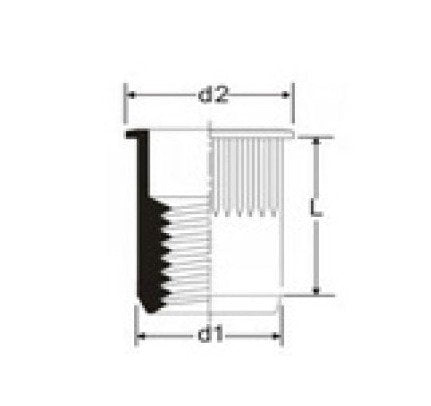

Dimensions Dimension D1
0.265 in
Dimensions Dimension D2
0.310 in
Dimensions Dimension K
0.019 in
Dimensions Dimension L
0.470 in
Dimensions Hole Size
17/64 in
Dimensions Maximum Grip Range
0.130 in
Dimensions Minimum Grip Range
0.080 in
Note Note
Stainless Steel & Aluminum are available. Serration style is available.
Technical Specs Brands
Ornit
Technical Specs Finish
Yellow Zinc Plated
Technical Specs Head Style
Countersunk Head (AK)
Technical Specs Material
Steel
Technical Specs Rivet Type
Open End
Technical Specs Style
Serration Style 2
Technical Specs Thread Size
#6-32
