K-Series #8-32 Open End Countersunk Head Rivet Nut
K-Series #8-32 Open End Countersunk Head Rivet Nut
SKU:KSE-49cd64
High-quality #8-32 steel rivet nut with serration style 2 for secure grip. Versatile dimensions. Stainless steel & aluminum options.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
K-Series #8-32 Open End Countersunk Head Rivet Nut
$12.99
Quantity: 1
Claim Your Seller Account
K-Series #8-32 Open End Countersunk Head Rivet Nut
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

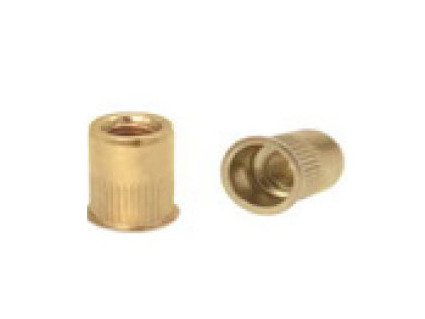

The K-Series 0.420 Inch Dimension L #8-32 Thread Size Open End Countersunk Head Rivet Nut is a high-quality fastening solution by Ornit. Made of steel with a yellow zinc plated finish, this rivet nut offers durability and corrosion resistance. Its serration style 2 adds enhanced grip strength for a secure hold. With dimensions carefully engineered for optimal performance and a range of 0.020 to 0.080 inches grip, this rivet nut is versatile and reliable. Available in stainless steel and aluminum variants, it meets industry standards for precision and quality.

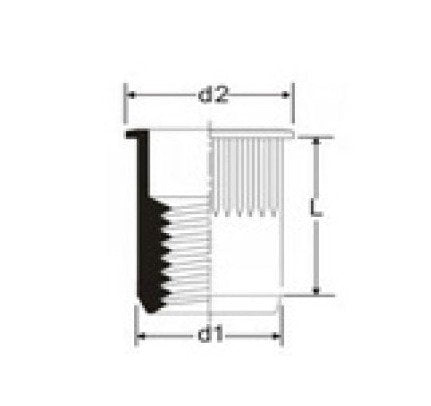

Product Specifications
Dimensions Dimension D1
0.265 in
Dimensions Dimension D2
0.310 in
Dimensions Dimension K
0.019 in
Dimensions Dimension L
0.420 in
Dimensions Hole Size
17/64 in
Dimensions Maximum Grip Range
0.080 in
Dimensions Minimum Grip Range
0.020 in
Note Note
Stainless Steel & Aluminum are available. Serration style is available.
Technical Specs Brands
Ornit
Technical Specs Finish
Yellow Zinc Plated
Technical Specs Head Style
Countersunk Head (AK)
Technical Specs Material
Steel
Technical Specs Rivet Type
Open End
Technical Specs Style
Serration Style 2
Technical Specs Thread Size
#8-32
