K-Series M6 Rivet Nut, 17.40mm AH Semi-Hex Flat Head, Open End

Name: K-Series M6 Rivet Nut, 17.40mm AH Semi-Hex Flat Head, Open End
Brand: Ornit USA
SKU: KSE-0ee9f9
Price: 24.99 USD
Availability: OutOfStock

SKU:KSE-0ee9f9

High-quality M6 Rivet Nut with Semi-Hex Flat Head design, perfect for secure fastening in various applications.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

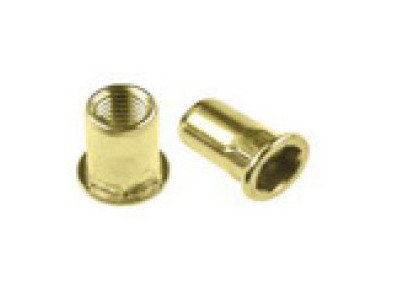

The K-Series M6 Rivet Nut features a durable steel construction with a yellow zinc finish, suitable for a wide range of applications. With a Semi-Hexagon Flat Head design and Open End type, this rivet nut offers a secure grip range of 4.2mm to 6.6mm. Precision engineered with dimensions L at 17.40mm and SW1 at 9.53mm, it provides reliable fastening strength. Available in stainless steel and aluminum variants, with serration style options, meeting diverse needs in various industries.

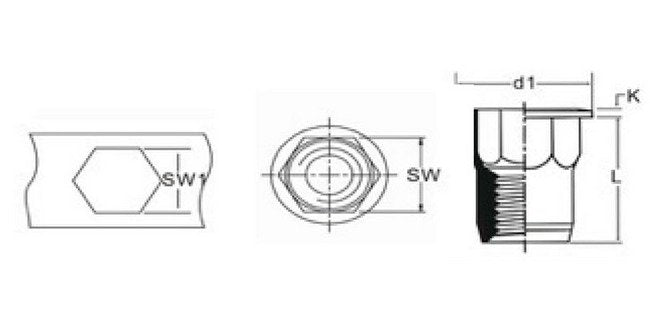

Product Specifications

Dimensions Dimension D1

12.96 mm

Dimensions Dimension K

0.76 mm

Dimensions Dimension L

17.40 mm

Dimensions Dimension Sw

9.50 mm

Dimensions Dimension Sw1

9.53 mm

Dimensions Maximum Grip Range

6.6 mm

Dimensions Minimum Grip Range

4.2 in

Note Note

Stainless Steel & Aluminum are available. Serration style is available.

Technical Specs Brands

Ornit

Technical Specs Finish

Yellow Zinc Plated

Technical Specs Head Style

Semi-Hexagon Flat Head (AH)

Technical Specs Material

Steel

Technical Specs Rivet Type

Open End

Technical Specs Thread Size

K-Series M6 Rivet Nut, 17.40mm AH Semi-Hex Flat Head, Open End
