K-Series M8 Imperial Rivet Nut

Name: K-Series M8 Imperial Rivet Nut
Brand: Ornit USA
SKU: KSE-a2271f
Price: 15.99 USD
Availability: OutOfStock

SKU:KSE-a2271f

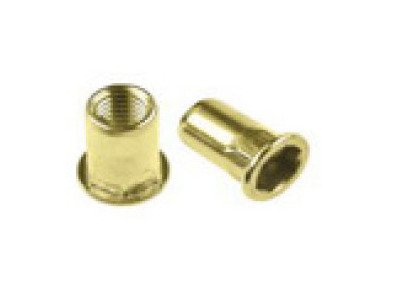

High-quality K-Series M8 Imperial Rivet Nut for industrial applications. Durable steel construction with yellow zinc plated finish. Open-end design with semi-hexagon flat head (AH).

$15.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The K-Series M8 Imperial Rivet Nut is a high-quality fastener designed for industrial applications. Manufactured by Ornit, a trusted brand, this rivet nut is made of durable steel with a yellow zinc plated finish, ensuring long-lasting performance. Featuring an open-end design and a semi-hexagon flat head (AH), it provides a secure grip range of 3.8mm to 7.9mm. With dimensions of 21.46mm (L) and 12.70mm (SW), this rivet nut is precision-engineered for reliability and strength. Stainless steel and aluminum options are also available for specialized needs.

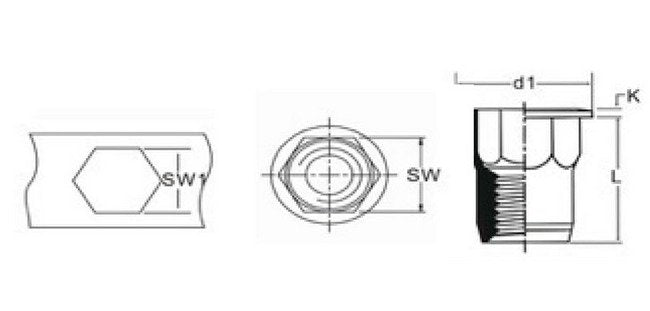

Product Specifications

Dimensions Dimension D1

16.64 mm

Dimensions Dimension K

0.89 mm

Dimensions Dimension L

21.46 mm

Dimensions Dimension Sw

12.70 mm

Dimensions Dimension Sw1

12.70 mm

Dimensions Maximum Grip Range

7.9 mm

Dimensions Minimum Grip Range

3.8 in

Note Note

Stainless Steel & Aluminum are available. Serration style is available.

Technical Specs Brands

Ornit

Technical Specs Finish

Yellow Zinc Plated

Technical Specs Head Style

Semi-Hexagon Flat Head (AH)

Technical Specs Material

Steel

Technical Specs Rivet Type

Open End

Technical Specs Thread Size

K-Series M8 Imperial Rivet Nut
