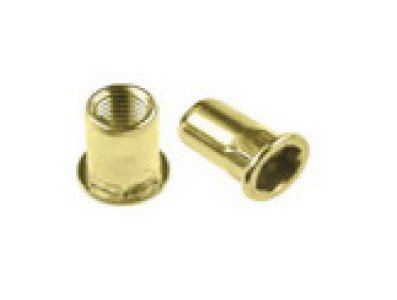

K-Series M8 Thread Size Rivet Nut - Semi-Hexagon Flat Head (AH)

Name: K-Series M8 Thread Size Rivet Nut - Semi-Hexagon Flat Head (AH)
Brand: Ornit USA
SKU: KSE-e0f717
Price: 24.99 USD
Availability: OutOfStock

SKU:KSE-e0f717

High-quality K-Series M8 Thread Semi-Hexagon Flat Head (AH) Rivet Nut for secure and precise industrial applications.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

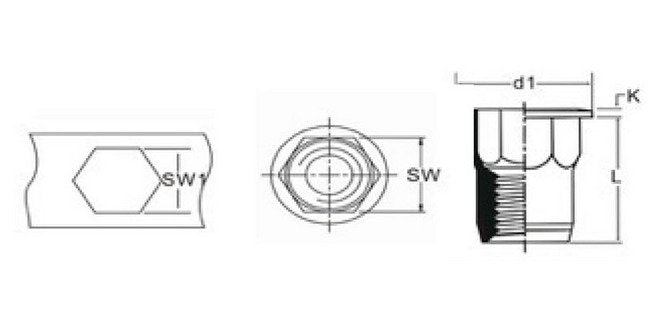

The K-Series 17.40mm Dimension L Rivet Nut is a top-choice for industrial applications, engineered by Ornit from high-quality steel with a yellow zinc-plated finish. Featuring a sturdy Semi-Hexagon Flat Head (AH) design and an open-end type, it offers a secure grip range from 0.7mm to 3.8mm. With dimensions meticulously crafted for precision work, including SW1 12.70mm, d1 16.64mm, and k 0.89mm, this rivet nut guarantees reliable performance. Optional stainless steel or aluminum materials and serration style provide versatile solutions for various projects.

Product Specifications

Dimensions Dimension D1

16.64 mm

Dimensions Dimension K

0.89 mm

Dimensions Dimension L

17.40 mm

Dimensions Dimension Sw

12.70 mm

Dimensions Dimension Sw1

12.70 mm

Dimensions Maximum Grip Range

3.8 mm

Dimensions Minimum Grip Range

0.7 in

Note Note

Stainless Steel & Aluminum are available. Serration style is available.

Technical Specs Brands

Ornit

Technical Specs Finish

Yellow Zinc Plated

Technical Specs Head Style

Semi-Hexagon Flat Head (AH)

Technical Specs Material

Steel

Technical Specs Rivet Type

Open End

Technical Specs Thread Size

K-Series M8 Thread Size Rivet Nut - Semi-Hexagon Flat Head (AH)
