K-Series Open End Countersunk Head (AK) Rivet Nut
K-Series Open End Countersunk Head (AK) Rivet Nut
SKU:KSE-3347a7
Durable K-Series Rivet Nut with Countersunk Head (AK), ideal for secure fastening. Compliant with Federal/DoD, GSA, and FAR standards.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
K-Series Open End Countersunk Head (AK) Rivet Nut
$12.99
Quantity: 1
Claim Your Seller Account
K-Series Open End Countersunk Head (AK) Rivet Nut
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

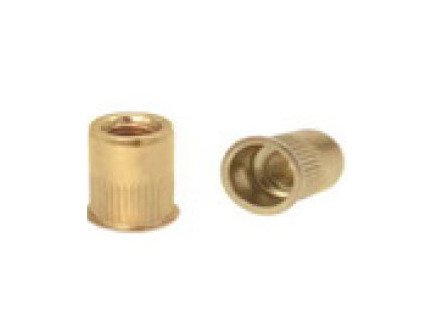

The K-Series 0.690 Inch Open End Countersunk Head (AK) Rivet Nut offers reliable fastening solutions for various applications. Manufactured with high-quality steel, featuring a yellow zinc plated finish, and available in multiple materials including stainless steel and aluminum, this rivet nut ensures durability and corrosion resistance. With a 3/8-24 thread size, a minimum grip range of 0.027 in, and serration style 2 design, it provides strong and secure fastening. Meeting Federal/DoD, GSA, and FAR compliance, this rivet nut is ideal for government and institutional procurement needs.

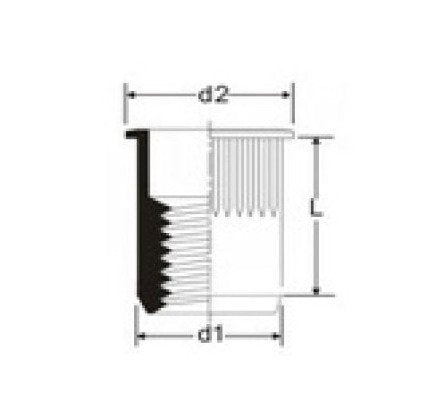

Product Specifications
Dimensions Dimension D1
0.530 in
Dimensions Dimension D2
0.595 in
Dimensions Dimension K
0.022 in
Dimensions Dimension L
0.690 in
Dimensions Hole Size
17/32 in
Dimensions Maximum Grip Range
0.150 in
Dimensions Minimum Grip Range
0.027 in
Note Note
Stainless Steel & Aluminum are available. Serration style is available.
Technical Specs Brands
Ornit
Technical Specs Finish
Yellow Zinc Plated
Technical Specs Head Style
Countersunk Head (AK)
Technical Specs Material
Steel
Technical Specs Rivet Type
Open End
Technical Specs Style
Serration Style 2
Technical Specs Thread Size
3/8-24
