K-Series Open End Countersunk Head Rivet Nut, #10-32 Thread, 0.585'' L
K-Series Open End Countersunk Head Rivet Nut, #10-32 Thread, 0.585'' L
SKU:KSE-908af2
High-quality K-Series rivet nut for secure fastening, #10-32 thread, 0.585'' L, steel construction, yellow zinc plated finish.
Regular price
$9.99
Regular price
Sale price
$9.99
Unit price
per
Initiate Order
K-Series Open End Countersunk Head Rivet Nut, #10-32 Thread, 0.585'' L
$9.99
Quantity: 1
Claim Your Seller Account
K-Series Open End Countersunk Head Rivet Nut, #10-32 Thread, 0.585'' L
$9.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

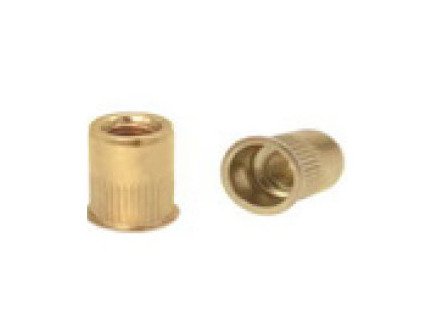

The K-Series Open End Countersunk Head (AK) Rivet Nut is a versatile and durable fastening solution for various applications. Made from high-quality steel with a yellow zinc plated finish, this rivet nut offers reliable performance. With a #10-32 thread size and precise dimensions, including a 0.585-inch Length and grip ranges from 0.130 to 0.225 inches, it ensures a secure and robust connection. The serration style 2 design enhances grip strength. Suitable for stainless steel and aluminum, meeting industry standards.

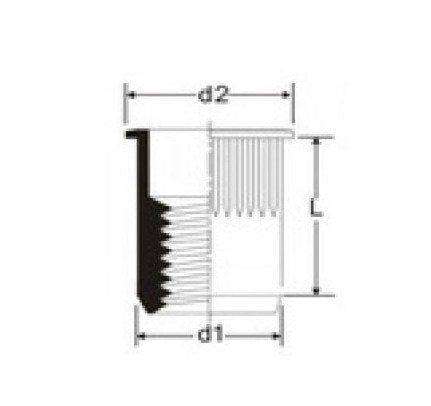

Product Specifications
Dimensions Dimension D1
0.296 in
Dimensions Dimension D2
0.340 in
Dimensions Dimension K
0.019 in
Dimensions Dimension L
0.585 in
Dimensions Hole Size
19/64 in
Dimensions Maximum Grip Range
0.225 in
Dimensions Minimum Grip Range
0.130 in
Note Note
Stainless Steel & Aluminum are available. Serration style is available.
Technical Specs Brands
Ornit
Technical Specs Finish
Yellow Zinc Plated
Technical Specs Head Style
Countersunk Head (AK)
Technical Specs Material
Steel
Technical Specs Rivet Type
Open End
Technical Specs Style
Serration Style 2
Technical Specs Thread Size
#10-32
