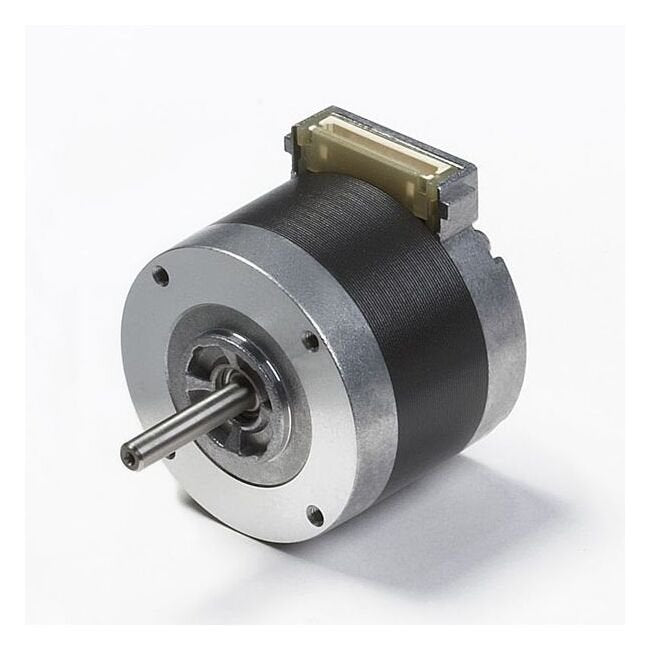

KA50 High Resolution Motor (0.9°/Step) - NEMA 17
KA50 High Resolution Motor (0.9°/Step) - NEMA 17
SKU:STE-c93ded
High torque, low vibration, and precise positioning in a cutting-edge high resolution motor.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
KA50 High Resolution Motor (0.9°/Step) - NEMA 17
$149.99
Quantity: 1
Claim Your Seller Account
KA50 High Resolution Motor (0.9°/Step) - NEMA 17
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The KA50 Series High Resolution Motor is a top-of-the-line stepping motor designed for precision and efficiency. With a step angle of 0.9 degrees/step, this motor delivers high torque, low vibration, silent operation, and exceptional position accuracy. Utilizing advanced technology and a robust design, it ensures optimal performance. Ideal for applications requiring superior control and reliability.
Product Specifications
Additional Information 0
a1242.jpg | a1244.jpg | Explanation of Dynamic Torque Curves | KA Series Motors with D-Cut Single Shaft Motors (Max. 1.8 Degree/Step) (KA50HM2-552) | KA50 Series 2 Phase Hybrid Motors (1.8 Degree/Step) - Nema 17 (KA50KM2)
Customize 0
Custom Designs
Dimensions 0
Specifications Current Per Phase
1.0 A
Specifications Detent Torque
1.4 oz·in | 10 mN·m
Specifications Holding Torque
30 oz·in | 215 mN·m
Specifications Inductance Per Phase
6.60 mH
Specifications L
1.38 in | 35.0 mm
Specifications Motor Frame Size
NEMA 17
Specifications Product Type
High Resolution Motor
Specifications Reference Part Number
KA50HM1-552
Specifications Resistance Per Phase
3.20 Ω
Specifications Rotor Inertia
0.3 oz·in² | 50 g·cm²
Specifications Series
2 Phase Round KA
Specifications Step Angle
0.9 deg./step
Specifications Type
KA50 Series High Resolution Motors (0.9 Degree/Step) - NEMA 17
Specifications Voltage Per Phase
3.20 V
Specifications Weight
230 g | 0.5 lb
Specifications Winding Method
Bipolar
Torque Curve 0
