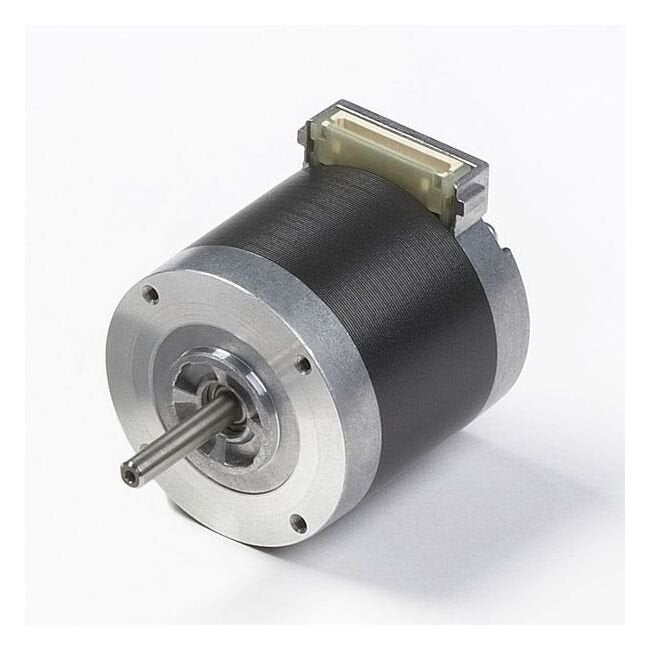

KA50 High Resolution NEMA 17 Stepping Motor (0.9 Degree/Step)
KA50 High Resolution NEMA 17 Stepping Motor (0.9 Degree/Step)
SKU:STE-60d2eb
Experience precision and reliability with the KA50 High Resolution NEMA 17 Stepping Motor. High torque, low vibration, and silent operation for your motion control needs.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
KA50 High Resolution NEMA 17 Stepping Motor (0.9 Degree/Step)
$89.99
Quantity: 1
Claim Your Seller Account
KA50 High Resolution NEMA 17 Stepping Motor (0.9 Degree/Step)
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The KA50 High Resolution NEMA 17 Stepping Motor from our 2 Phase Round KA Series combines high torque, low vibration, and silent operation with superior position accuracy. Utilizing advanced magnetic balance and cutting-edge three-dimensional magnetic field analysis technology, this motor ensures optimal performance and durability. With a step angle of 0.9 degrees/step, voltage per phase of 3.32 V, and a holding torque of 57 oz·in, it delivers precise motion control for a wide range of applications.
Product Specifications
Additional Information 0
a1241.jpg | a1243.jpg | Explanation of Dynamic Torque Curves | KA50 Series 2 Phase Hybrid Motors (1.8 Degree/Step) - Nema 17 (KA50KM2)
Customize 0
Custom Designs
Dimensions 0
Specifications Current Per Phase
2.0 A
Specifications Detent Torque
2.5 oz·in | 18 mN·m
Specifications Holding Torque
57 oz·in | 403 mN·m
Specifications Inductance Per Phase
2.1 mH
Specifications L
1.97 in | 50 mm
Specifications Motor Frame Size
NEMA 17
Specifications Product Type
High Resolution Motor
Specifications Reference Part Number
KA50KM1-501
Specifications Resistance Per Phase
1.66 Ω
Specifications Rotor Inertia
0.5 oz·in² | 100 g·cm²
Specifications Series
2 Phase Round KA
Specifications Step Angle
0.9 deg./step
Specifications Type
KA50 Series High Resolution Motors (0.9 Degree/Step) - NEMA 17
Specifications Voltage Per Phase
3.32 V
Specifications Weight
420 g | 0.9 lb
Specifications Winding Method
Unipolar
Torque Curve 0
