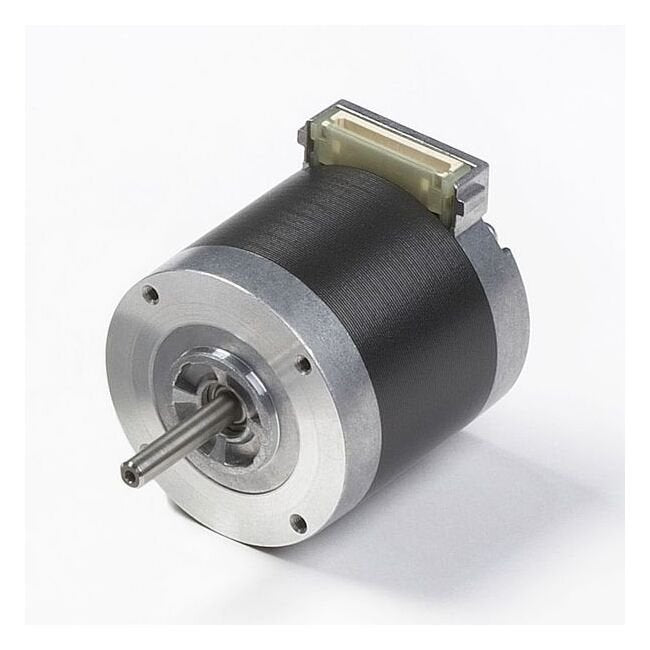

• KA50 Series High Resolution Motor (0.9°/Step) - NEMA 17 Stepping Motor - Image 1
1 1
Elinco International JPC, Inc. →

KA50 Series High Resolution Motor (0.9°/Step) - NEMA 17 Stepping Motor

KA50 Series High Resolution Motor (0.9°/Step) - NEMA 17 Stepping Motor

STE-f1c615

Experience high torque, low vibration, and silent operation with the KA50 Series High Resolution Motor. Achieve superior position accuracy and efficiency for precision applications.

$89.99
$89.99
Sale

Initiate Order

KA50 Series High Resolution Motor (0.9°/Step) - NEMA 17 Stepping Motor

KA50 Series High Resolution Motor (0.9°/Step) - NEMA 17 Stepping Motor

$89.99

Quantity: 1

Claim Your Seller Account

KA50 Series High Resolution Motor (0.9°/Step) - NEMA 17 Stepping Motor

KA50 Series High Resolution Motor (0.9°/Step) - NEMA 17 Stepping Motor

$89.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The KA50 Series High Resolution Motor boasts exceptional performance in precision motion control applications. With a low vibration, silent operation, and high torque design, this stepping motor ensures optimal position accuracy for a wide range of industrial tasks. Utilizing advanced magnetic balance technology and a robust construction, this NEMA 17 motor delivers enhanced efficiency and reliability. Ideal for demanding projects requiring precise motion control.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Additional Information 0
a1241.jpg | a1243.jpg | Explanation of Dynamic Torque Curves | KA50 Series 2 Phase Hybrid Motors (1.8 Degree/Step) - Nema 17 (KA50KM2) | KA50JM2-551.jpg
Customize 0
Custom Designs
Dimensions 0
Specifications Current Per Phase
1.0 A
Specifications Detent Torque
1.7 oz·in | 12 mN·m
Specifications Holding Torque
43 oz·in | 304 mN·m
Specifications Inductance Per Phase
6.9 mH
Specifications L
1.57 in | 40 mm
Specifications Motor Frame Size
NEMA 17
Specifications Product Type
High Resolution Motor
Specifications Reference Part Number
KA50JM1-502
Specifications Resistance Per Phase
5.0 Ω
Specifications Rotor Inertia
0.4 oz·in² | 70 g·cm²
Specifications Series
2 Phase Round KA
Specifications Step Angle
0.9 deg./step
Specifications Type
KA50 Series High Resolution Motors (0.9 Degree/Step) - NEMA 17
Specifications Voltage Per Phase
5.00 V
Specifications Weight
300 g | 0.7 lb
Specifications Winding Method
Unipolar
