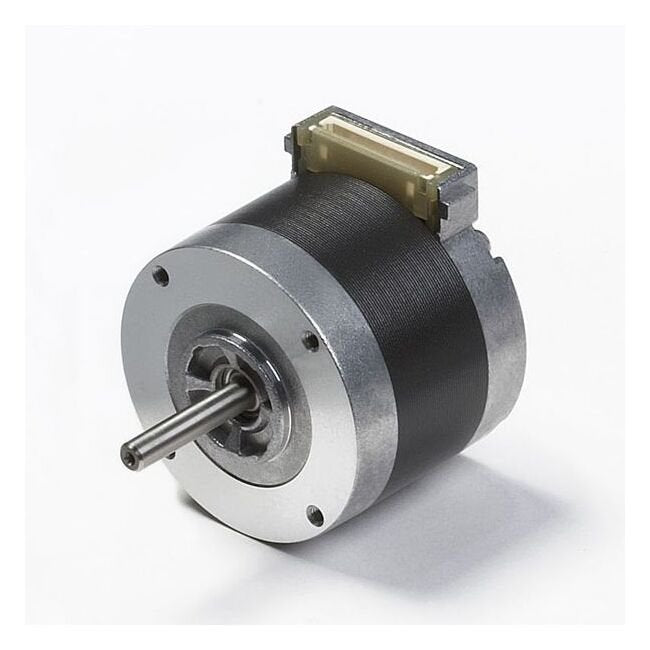

KA50 Series High Resolution Motor NEMA 17 0.9 deg/step
KA50 Series High Resolution Motor NEMA 17 0.9 deg/step
SKU:STE-1b3834
High torque, low vibration, and precise positioning KA50 Series High Resolution Motor for industrial applications.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
KA50 Series High Resolution Motor NEMA 17 0.9 deg/step
$89.99
Quantity: 1
Claim Your Seller Account
KA50 Series High Resolution Motor NEMA 17 0.9 deg/step
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The KA50 Series High Resolution Motor is a cutting-edge 2 Phase Round KA Series stepping motor designed for high performance applications. With a NEMA 17 motor frame size, this motor boasts a step angle of 0.9 degrees/step, delivering precise positioning. It features a voltage of 1.96 V per phase, current of 2.0 A per phase, and a holding torque of 49 oz·in, ensuring optimal functioning. Employing advanced technology for low vibration and silent operation, this motor provides exceptional accuracy and reliability, making it ideal for a wide range of industrial and institutional applications.
Product Specifications
Additional Information 0
a1243.jpg | a1244.jpg | Explanation of Dynamic Torque Curves | KA50 Series 2 Phase Hybrid Motors (1.8 Degree/Step) - Nema 17 (KA50KM2) | KA50JM2-551.jpg
Customize 0
Custom Designs
Dimensions 0
Specifications Current Per Phase
2.0 A
Specifications Detent Torque
1.7 oz·in | 12 mN·m
Specifications Holding Torque
49 oz·in | 347 mN·m
Specifications Inductance Per Phase
2.3 mH
Specifications L
1.57 in | 40 mm
Specifications Motor Frame Size
NEMA 17
Specifications Product Type
High Resolution Motor
Specifications Reference Part Number
KA50JM1-551
Specifications Resistance Per Phase
0.98 Ω
Specifications Rotor Inertia
0.4 oz·in² | 70 g·cm²
Specifications Series
2 Phase Round KA
Specifications Step Angle
0.9 deg./step
Specifications Type
KA50 Series High Resolution Motors (0.9 Degree/Step) - NEMA 17
Specifications Voltage Per Phase
1.96 V
Specifications Weight
300 g | 0.7 lb
Specifications Winding Method
Bipolar
Torque Curve 0
