Experience precision and high torque with the KA60 Series 2 Phase Hybrid Motor. Ideal for accurate and efficient motion control applications.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
KA60 Series 2 Phase Hybrid Motor - High Torque Stepper Motor
$129.99
Quantity: 1
Claim Your Seller Account
KA60 Series 2 Phase Hybrid Motor - High Torque Stepper Motor
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

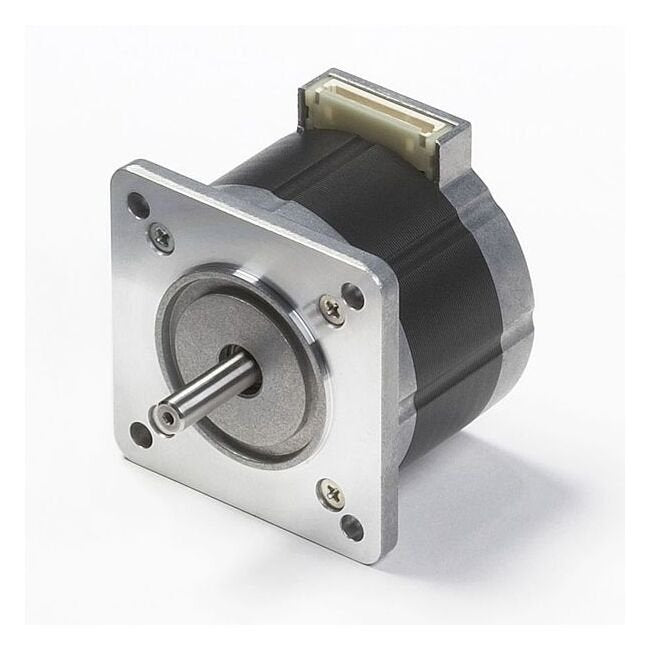

The KA60 Series 2 Phase Hybrid Motor is a cutting-edge NEMA 23 stepper motor designed for precision and performance. With a step angle of 1.8 degrees/step, this motor boasts high torque, low vibration, and exceptional position accuracy. Utilizing advanced technology and a robust design, it ensures silent operation and optimal magnetic balance, making it ideal for a wide range of applications requiring reliable motor performance.
Product Specifications
Additional Information 0
a1224.jpg | a1226.jpg | Explanation of Dynamic Torque Curves | KA60 Series 2 Phase Hybrid Motors (1.8 Degree/Step) - Nema 23 (KA60JM2)
Customize 0
Custom Designs
Dimensions 0
Specifications Current Per Phase
3.3 A
Specifications Detent Torque
5.0 oz·in | 35 mN·m
Specifications Holding Torque
100 oz·in | 707 mN·m
Specifications Inductance Per Phase
0.83 mH
Specifications L
1.73 in | 44 mm
Specifications Motor Frame Size
NEMA 23
Specifications Product Type
Stepper Motor
Specifications Reference Part Number
KA60JM2-501
Specifications Resistance Per Phase
0.74 Ω
Specifications Rotor Inertia
180 g·cm² | 1.0 oz·in²
Specifications Series
2 Phase Round KA
Specifications Step Angle
1.8 deg./step
Specifications Type
KA60 Series 2 Phase Hybrid Motors (1.8 Degree/Step) - NEMA 23
Specifications Voltage Per Phase
2.44 V
Specifications Weight
500 g | 1.1 lb
Specifications Winding Method
Unipolar
Torque Curve 0
