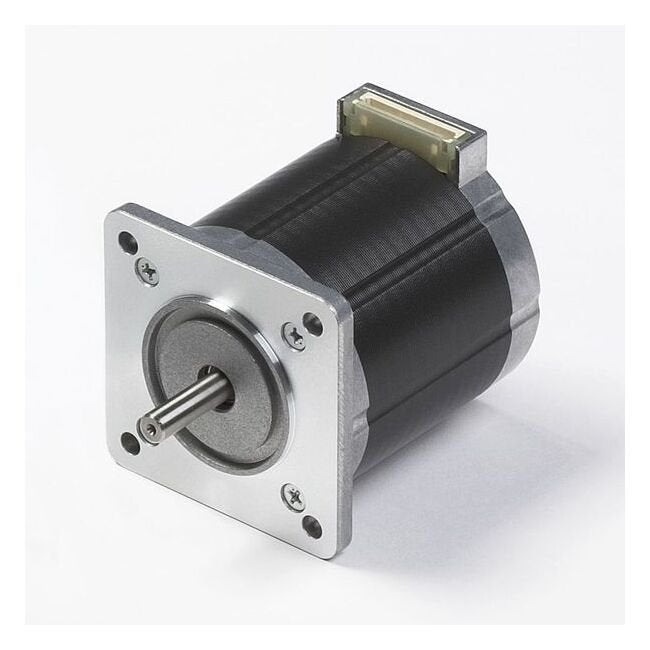

• KA60 Series 2 Phase Hybrid Motor - High Torque Stepper Motor - Image 1
1 1
Elinco International JPC, Inc. →

KA60 Series 2 Phase Hybrid Motor - High Torque Stepper Motor

KA60 Series 2 Phase Hybrid Motor - High Torque Stepper Motor

STE-1d5503

High-performance stepper motor for precise motion control with high torque, low vibration, and silent operation.

$89.99
$89.99
Sale

Initiate Order

KA60 Series 2 Phase Hybrid Motor - High Torque Stepper Motor

KA60 Series 2 Phase Hybrid Motor - High Torque Stepper Motor

$89.99

Quantity: 1

Claim Your Seller Account

KA60 Series 2 Phase Hybrid Motor - High Torque Stepper Motor

KA60 Series 2 Phase Hybrid Motor - High Torque Stepper Motor

$89.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The KA60 Series 2 Phase Hybrid Motor is a high-performance stepper motor designed for precision and efficiency. With a step angle of 1.8 degrees/step, this NEMA 23 motor offers high torque, low vibration, silent operation, and exceptional position accuracy. Utilizing advanced three-dimensional magnetic field analysis and a robust design, it ensures the best magnetic balance for optimized motor performance. Ideal for applications requiring reliable and precise motion control.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Additional Information 0
a1225.jpg | a1227.jpg | Explanation of Dynamic Torque Curves | KA60 Series 2 Phase Hybrid Motors (1.8 Degree/Step) - Nema 23 (KA60JM2) | KA60LM2.jpg
Customize 0
Custom Designs
Dimensions 0
Specifications Current Per Phase
3.3 A
Specifications Detent Torque
8.5 oz·in | 60 mN·m
Specifications Holding Torque
227 oz·in | 1600 mN·m
Specifications Inductance Per Phase
2.2 mH
Specifications L
2.56 in | 65 mm
Specifications Motor Frame Size
NEMA 23
Specifications Product Type
Stepper Motor
Specifications Reference Part Number
KA60LM2-551
Specifications Resistance Per Phase
0.9 Ω
Specifications Rotor Inertia
360 g·cm² | 2.0 oz·in²
Specifications Series
2 Phase Round KA
Specifications Step Angle
1.8 deg./step
Specifications Type
KA60 Series 2 Phase Hybrid Motors (1.8 Degree/Step) - NEMA 23
Specifications Voltage Per Phase
2.97 V
Specifications Weight
850 g | 1.9 lb
Specifications Winding Method
Bipolar
