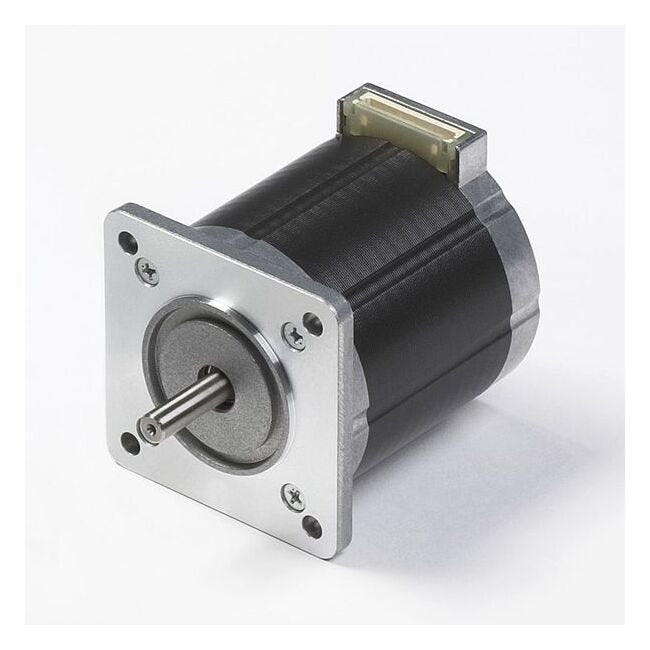

KA60 Series 2 Phase Hybrid Motor NEMA 23 - High Torque Stepper Motor
KA60 Series 2 Phase Hybrid Motor NEMA 23 - High Torque Stepper Motor
SKU:STE-6e2be3
High torque, low vibration, and precise positioning in a robust NEMA 23 stepper motor for industrial automation.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
KA60 Series 2 Phase Hybrid Motor NEMA 23 - High Torque Stepper Motor
$149.99
Quantity: 1
Claim Your Seller Account
KA60 Series 2 Phase Hybrid Motor NEMA 23 - High Torque Stepper Motor
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The KA60 Series 2 Phase Hybrid Motor is a high-performance NEMA 23 stepper motor, designed for precision and reliability in industrial applications. With a step angle of 1.8 degrees/step, this motor delivers high torque, low vibration, silent operation, and exceptional position accuracy. Its robust design incorporates advanced three-dimensional magnetic field analysis, ensuring optimal motor performance for industrial automation needs.
Product Specifications
Additional Information 0
a1224.jpg | a1226.jpg | Explanation of Dynamic Torque Curves | KA60 Series 2 Phase Hybrid Motors (1.8 Degree/Step) - Nema 23 (KA60JM2) | KA60LM2.jpg
Customize 0
Custom Designs
Dimensions 0
Specifications Current Per Phase
3.3 A
Specifications Detent Torque
8.5 oz·in | 60 mN·m
Specifications Holding Torque
186 oz·in | 1315 mN·m
Specifications Inductance Per Phase
1.6 mH
Specifications L
2.56 in | 65 mm
Specifications Motor Frame Size
NEMA 23
Specifications Product Type
Stepper Motor
Specifications Reference Part Number
KA60LM2-501
Specifications Resistance Per Phase
1.10 Ω
Specifications Rotor Inertia
360 g·cm² | 2.0 oz·in²
Specifications Series
2 Phase Round KA
Specifications Step Angle
1.8 deg./step
Specifications Type
KA60 Series 2 Phase Hybrid Motors (1.8 Degree/Step) - NEMA 23
Specifications Voltage Per Phase
3.63 V
Specifications Weight
850 g | 1.9 lb
Specifications Winding Method
Unipolar
Torque Curve 0
