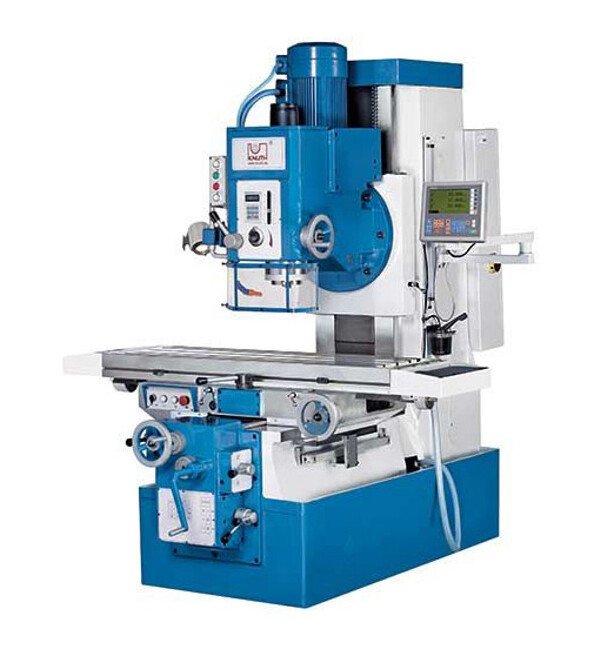

The KB1400 Bed-Type Milling Machine by KNUTH offers unparalleled stability and precision with its uniquely designed cutter head movement on the Z-axis. This feature, along with a sturdy cast-iron frame, ensures minimal vibration and superior table load capacity. Equipped with a versatile frequency drive for speed adjustment and rigid rectangular guideways, this machine guarantees long-lasting accuracy. The standard 3-axis position indicator enhances productivity and accuracy, making it an ideal choice for industrial applications.
Product Specifications
Details Details

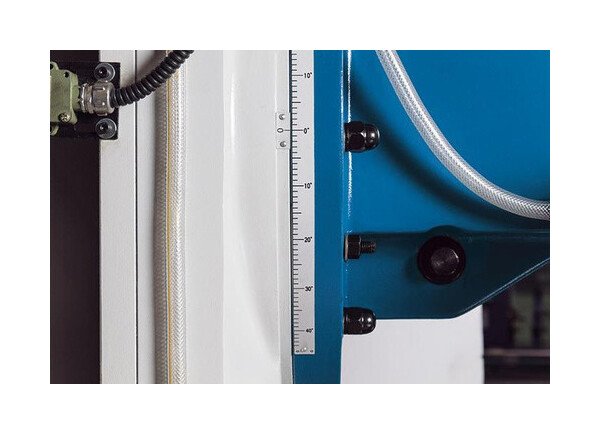

Only the cutter head - not the machine table - moves on the Z axis. This results in improved stability, less vibration, and ultimately in increases precision and extremely high table load capacity! This effect is emphasized even more by the large, heavy cast-iron frame (Meehanite) and extremely wide box ways.Infinitely variable speed adjustment provided through frequency driveRigid rectangular guideways for long-lasting accuracyMeehanite cast-iron frameCutter head swivels ± 45°Hardened and ground guide ways on all axisStandard 3-axis position indicator
Standard Equipment Standard Equipment
Collet chuck with collets (0.16",0.2",0.24",0.31",0.39",0.47",0.55",0.63" diam.)Reducing sleeves MT4, MT3, MT2Cutter arbor à 1.5"Coolant systemWork lampCentral lubricationOperating toolsOperator manual
Technical Specs 3 Axis Position Indicator
More accuracyLower error rateIncreased productivityResulting in valuable time savingsFor increased productivityEasy to read displayOperator-specific featuresConvenient keyboard layoutResolution: 0.0004/0.0002"Default coordinatesAxis position is maintained when display is turned offHole circle pattern calculationCalculator functionStorage for 10 toolsRadius / diameter toggleEasy expansion and maintenance-free operation
Technical Specs Brands
KNUTH
Technical Specs Feed Speed X Axis
1 to 25 in/min
Technical Specs Feed Speed Y Axis
1 to 25 in/min
Technical Specs Feed Speed Z Axis
1 to 25 in/min
Technical Specs Flow Rate And Coolant Pump
3 gal/min
Technical Specs Head Tilting Bank In Degrees
45 º
Technical Specs Head Tilting Front In Degrees
45 º
Technical Specs Height
84 in
Technical Specs Length
91 in
Technical Specs Main Motor
10.1 hp
Technical Specs Motor Rating Coolant Pump
0.1 hp
Technical Specs Motor Rating Feed
1 hp
Technical Specs Motor Rating For Z Axis Drive
1 hp
Technical Specs Rapid Feed X Axis
65.75 in/min
Technical Specs Rapid Feed Y Axis
65.75 in/min
Technical Specs Rapid Feed Z Axis
65.75 in/min
Technical Specs Speed Height Adjustment Maximum
65.75 in/min
Technical Specs Spindle Axis To Table Surface Distance
5.91 to 25.59 in
Technical Specs Spindle Speeds
30 to 1800 rpm
Technical Specs Table Size
55 x 16 in
Technical Specs Travel Y Axis
16 in
Technical Specs Travel Z Axis
20 in
Technical Specs T Slots Number And Size
3 in
Technical Specs T Slots Spacing
3.9 in
Technical Specs T Slots Width
0.7 in
Technical Specs Vertical Milling Head Quill Stroke
4 in
Technical Specs Vertical Milling Head Spindle Mount
International Organization for Standardization (ISO 50)
Technical Specs Vertical Milling Head Throat
20 in
Technical Specs Weight
8052 lb
Technical Specs Width
70 in
Technical Specs X Axis Table Travel
37.4 in
