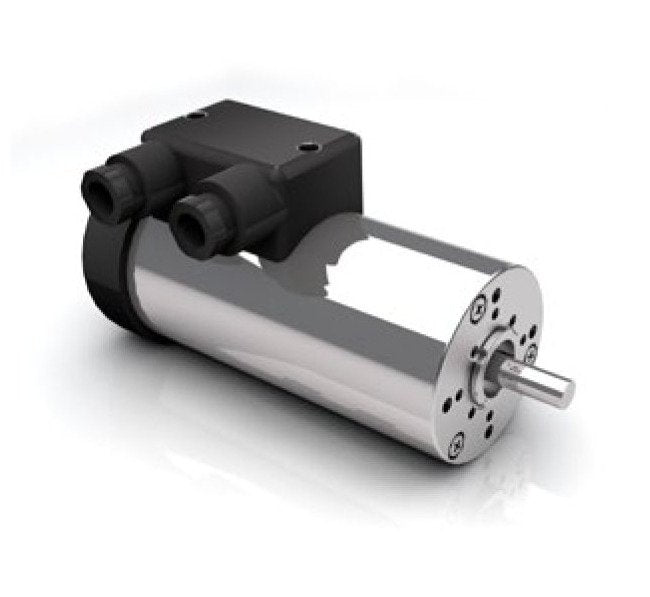

KD/DR Series 0.112 N·m AC Motor by Dunkermotoren
KD/DR Series 0.112 N·m AC Motor by Dunkermotoren
SKU:KDD-73c67a
Efficient and durable KD/DR Series 0.112 N·m AC Motor by Dunkermotoren, ideal for diverse applications. Compliant with CQC and UL standards.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
KD/DR Series 0.112 N·m AC Motor by Dunkermotoren
$289.99
Quantity: 1
Claim Your Seller Account
KD/DR Series 0.112 N·m AC Motor by Dunkermotoren
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The KD/DR Series 0.112 N·m AC Motor by Dunkermotoren boasts a rugged design with maintenance-free operation throughout its lifetime. Featuring ball bearings and surface cooling by a built-in blower, this motor ensures maximum durability. With a three-phase, four-pole design, reversible rotational direction, and availability in different lengths, it offers versatile performance for various applications. This motor is Vibration-resistant and can be combined with gearboxes and brakes, providing IP44 protection when flange-mounted. Compliant with China Quality Certification (CQC) and Underwriters Laboratories (UL) standards, it meets stringent industry requirements.
Product Specifications
Additional Information Additional Information
Can be combined with gearboxes and brakesIP 44 protected when flange-mountedInsulation material according to VDE 0530, corresponds to insulation class ESurface protected by passivated housing
Features Features
Vibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Connection Type
Delta (Î) | Star (Y)
Technical Specs Frequency
50 Hz | 60 Hz
Technical Specs Industry Standardscertifications
China Quality Certification (CQC) | Underwriters Laboratories (UL)
Technical Specs Moment Of Intertia J
280 g/cm²
Technical Specs Nominal Output Power Pn
14 W
Technical Specs Nominal Speed Nn
1200 rpm
Technical Specs Nominal Torque Mn
0.112 N·m
Technical Specs Nominal Voltage
230 V | 400 V
Technical Specs Note For Frequency
For 50 Hz operation. Not included in scope of delivery
Technical Specs Power
5 to 14 W
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP54)
Technical Specs Pull Out Torque Mk
0.182 N·m
Technical Specs Rated Current In
0.10 A
Technical Specs Starting Torque Ma
0.21 N·m
Technical Specs Weight M B 14 Din 42950
1.7 kg
