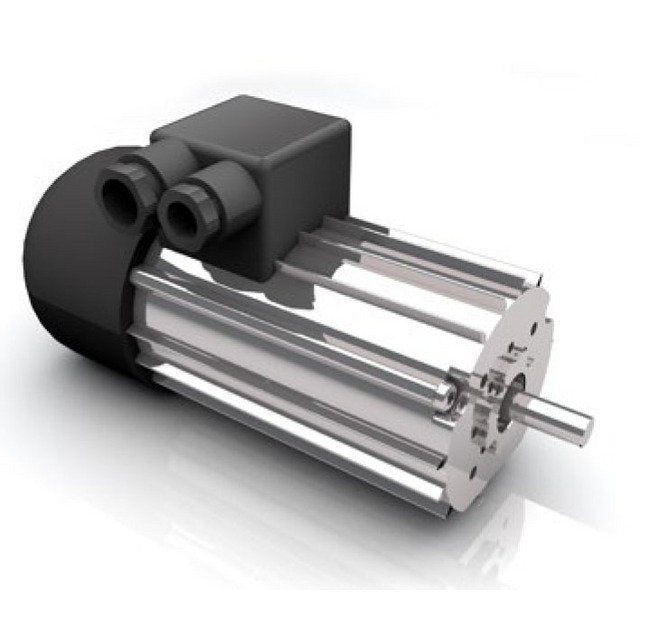

The KD/DR Series 0.278 Nm Nominal Torque MN AC Motor by Dunkermotoren is a reliable and maintenance-free option suitable for a wide range of applications. With ball bearings, built-in blower for cooling, and a rugged design, this motor ensures longevity and efficiency. It offers reversible rotational direction, vibration resistance, and can be combined with gearboxes and brakes for added versatility. Meeting IP54 protection standards when flange-mounted and complying with industry certifications like CQC and UL, this motor guarantees quality and performance.
Product Specifications
Additional Information Additional Information
Can be combined with gearboxes and brakesIP 54 protected when flange-mountedInsulation material according to VDE 0530, corresponds to insulation class FSurface protected by aluminum housingEnd shields made of die-cast aluminumPhases with isolation state for frequency operation
Features Features
Vibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Connection Type
Delta (Î) | Star (Y)
Technical Specs Frequency
50 Hz | 60 Hz
Technical Specs Industry Standardscertifications
China Quality Certification (CQC) | Underwriters Laboratories (UL)
Technical Specs Moment Of Intertia J
370 g/cm²
Technical Specs Nominal Output Power Pn
31 W
Technical Specs Nominal Speed Nn
1100 rpm
Technical Specs Nominal Torque Mn
0.278 N·m
Technical Specs Nominal Voltage
230 V
Technical Specs Power
25 to 31 W
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP54)
Technical Specs Rated Current In
0.19 A
Technical Specs Starting Torque Ma
0.42 N·m
Technical Specs Weight M B 14 Din 42950
2.00 kg
