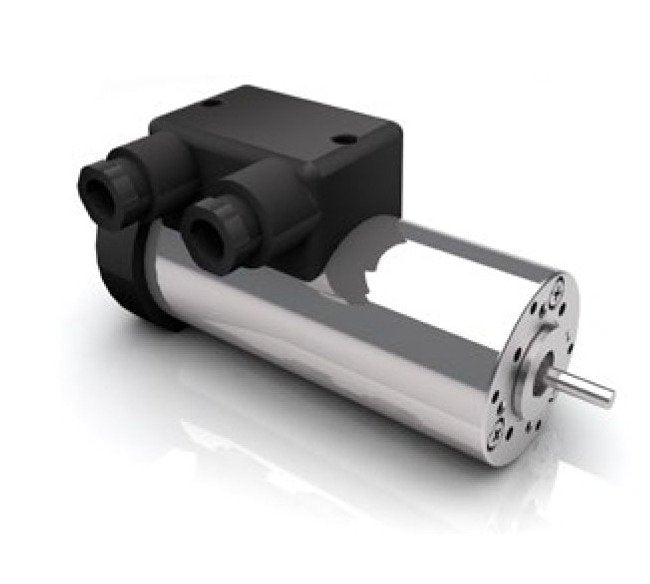

KD/DR Series AC Motor - 0.082 Nm Torque, 230V/400V, IP54
KD/DR Series AC Motor - 0.082 Nm Torque, 230V/400V, IP54
SKU:KDD-8c9f40
Efficient and reliable KD/DR Series AC Motor with 0.082 Nm torque, IP54 protection, and industry-standard compliance.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
KD/DR Series AC Motor - 0.082 Nm Torque, 230V/400V, IP54
$249.99
Quantity: 1
Claim Your Seller Account
KD/DR Series AC Motor - 0.082 Nm Torque, 230V/400V, IP54
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The KD/DR Series AC Motor is a powerhouse of efficiency and reliability, boasting a rugged design and maintenance-free operation throughout its lifetime. With ball bearings, surface cooling, and a reversible two-pole design, this motor ensures maximum longevity. Featuring a 0.082 Nm nominal torque and vibration resistance, it is ideal for a range of applications. Meeting China Quality Certification (CQC) and Underwriters Laboratories (UL) standards, this motor guarantees quality performance that aligns with industry expectations.
Product Specifications
Additional Information Additional Information
Can be combined with gearboxes and brakesIP 44 protected when flange-mountedInsulation material according to VDE 0530, corresponds to insulation class ESurface protected by passivated housing
Features Features
Vibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Connection Type
Delta (Î) | Star (Y)
Technical Specs Frequency
50 Hz | 60 Hz
Technical Specs Industry Standardscertifications
China Quality Certification (CQC) | Underwriters Laboratories (UL)
Technical Specs Moment Of Intertia J
206 g/cm²
Technical Specs Nominal Output Power Pn
22 W
Technical Specs Nominal Speed Nn
2600 rpm
Technical Specs Nominal Torque Mn
0.082 N·m
Technical Specs Nominal Voltage
230 V | 400 V
Technical Specs Power
20 to 22 W
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP54)
Technical Specs Pull Out Torque Mk
0.151 N·m
Technical Specs Rated Current In
0.10 A
Technical Specs Starting Torque Ma
0.145 N·m
Technical Specs Weight M B 14 Din 42950
1.1 kg
