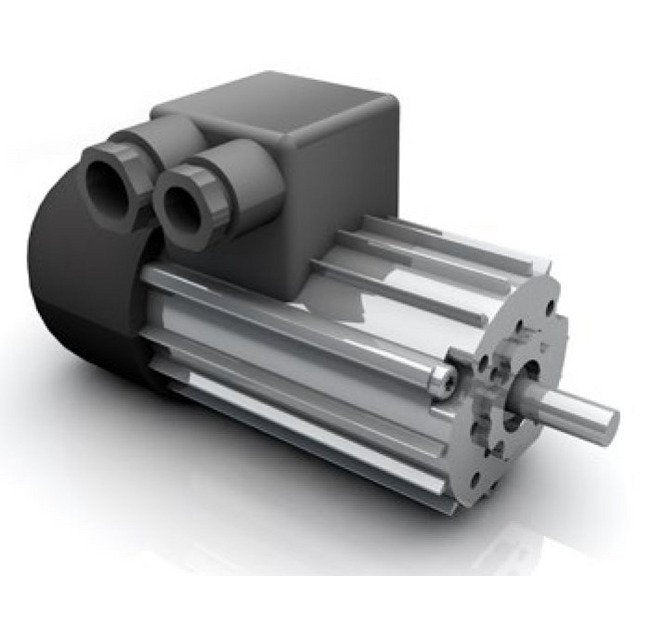

The KD/DR Series 0.12 N·m Nominal Torque AC Motor from Dunkermotoren combines rugged design with maintenance-free operation throughout its lifetime. Featuring ball bearings and surface cooling for maximum durability, this motor offers a versatile three-phase, two-pole design with reversible rotational direction. With Vibration resistance and IP54 protection when flange-mounted, this motor meets China Quality Certification (CQC) and Underwriters Laboratories (UL) standards, making it an ideal choice for various institutional applications.
Product Specifications
Additional Information Additional Information
Can be combined with gearboxes and brakesIP 54 protected when flange-mountedInsulation material according to VDE 0530, corresponds to insulation class FSurface protected by aluminum housing
Features Features
Vibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Connection Type
Delta (Î) | Star (Y)
Technical Specs Frequency
50 Hz | 60 Hz
Technical Specs Industry Standardscertifications
China Quality Certification (CQC) | Underwriters Laboratories (UL)
Technical Specs Moment Of Intertia J
230 g/cm²
Technical Specs Nominal Output Power Pn
30 W
Technical Specs Nominal Speed Nn
2600 rpm
Technical Specs Nominal Torque Mn
0.12 N·m
Technical Specs Nominal Voltage
230 V
Technical Specs Power
25 to 30 W
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP54)
Technical Specs Rated Current In
0.15 A
Technical Specs Starting Torque Ma
0.22 N·m
Technical Specs Weight M B 14 Din 42950
1.2 kg
