KD/DR Series AC Motor 0.16 Nm Nominal Torque
KD/DR Series AC Motor 0.16 Nm Nominal Torque
SKU:KDD-d77ea0
Rugged, vibration-resistant AC motor with 0.16 Nm torque. Ideal for institutional use. Compliant with CQC and UL.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
KD/DR Series AC Motor 0.16 Nm Nominal Torque
$299.99
Quantity: 1
Claim Your Seller Account
KD/DR Series AC Motor 0.16 Nm Nominal Torque
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

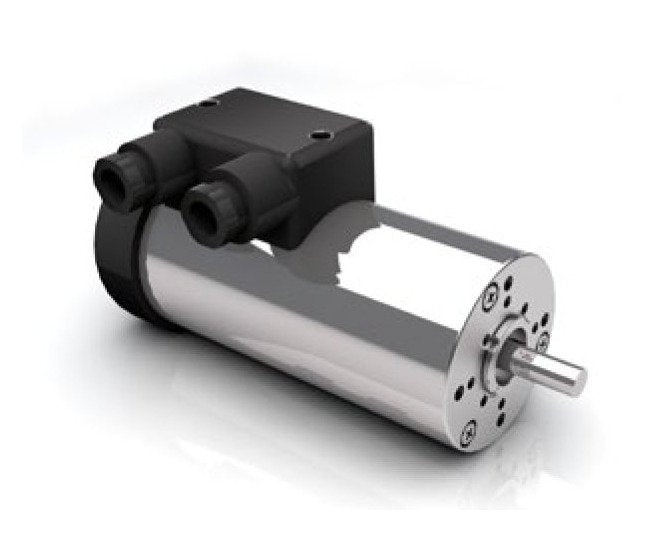

The KD/DR Series 0.16 Nm Nominal Torque AC Motor by Dunkermotoren is a rugged, maintenance-free motor designed for maximum lifetime usage. With ball bearings and surface cooling, this motor offers vibration resistance and IP44 protection when flange-mounted. Compliant with industry standards such as China Quality Certification (CQC) and UL, it can be combined with gearboxes and brakes, making it a preferred choice for institutional and government applications.
Product Specifications
Additional Information Additional Information
Can be combined with gearboxes and brakesIP 44 protected when flange-mountedInsulation material according to VDE 0530, corresponds to insulation class ESurface protected by passivated housing
Features Features
Vibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Connection Type
Delta (Î) | Star (Y)
Technical Specs Frequency
50 Hz | 60 Hz
Technical Specs Industry Standardscertifications
China Quality Certification (CQC) | Underwriters Laboratories (UL)
Technical Specs Moment Of Intertia J
280 g/cm²
Technical Specs Nominal Output Power Pn
44 W
Technical Specs Nominal Speed Nn
2600 rpm
Technical Specs Nominal Torque Mn
0.16 N·m
Technical Specs Nominal Voltage
230 V | 400 V
Technical Specs Note For Frequency
For 50 Hz operation. Not included in scope of delivery
Technical Specs Power
34 to 44 W
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP54)
Technical Specs Pull Out Torque Mk
0.31 N·m
Technical Specs Rated Current In
0.16 A
Technical Specs Starting Torque Ma
0.325 N·m
Technical Specs Weight M B 14 Din 42950
1.6 kg
