KD Series 0.037 Nm AC Motor
KD Series 0.037 Nm AC Motor
SKU:KDD-ef73de
Dunkermotoren KD Series 0.037 Nm AC Motor: Rugged, reliable, and compliant with industry standards for lasting performance.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
KD Series 0.037 Nm AC Motor
$129.99
Quantity: 1
Claim Your Seller Account
KD Series 0.037 Nm AC Motor
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

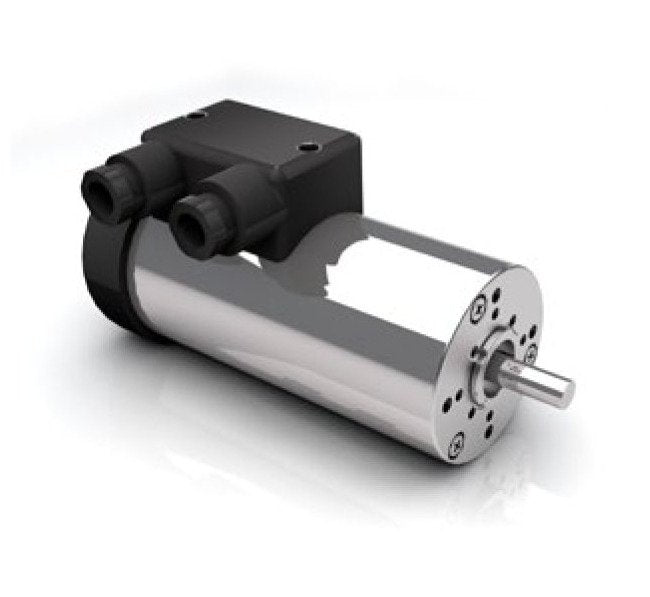

The KD Series 0.037 Nm Nominal Torque AC Motor from Dunkermotoren is a rugged and maintenance-free motor designed for longevity and performance. With ball bearings, built-in blower cooling, and a reversible rotational direction, this motor offers reliability and flexibility. It meets China Quality Certification (CQC) and Underwriters Laboratories (UL) standards, ensuring high-quality performance and durability for both consumer and institutional applications.
Product Specifications
Additional Information Additional Information
Can be combined with gearboxes and brakesIP 44 protected when flange-mountedInsulation material according to VDE 0530, corresponds to insulation class ESurface protected by passivated housing
Features Features
Vibration resistance
Phase Shifting Capacitor1 Capacitance Cb
1.5 µF
Phase Shifting Capacitor1 Voltage Uc
~240 V
Technical Specs Brands
Dunkermotoren
Technical Specs Connection Type
Delta (Î)
Technical Specs Frequency
50 Hz | 60 Hz
Technical Specs Industry Standardscertifications
China Quality Certification (CQC) | Underwriters Laboratories (UL)
Technical Specs Moment Of Intertia J
234 g/cm²
Technical Specs Nominal Output Power Pn
5 W
Technical Specs Nominal Speed Nn
1200 rpm
Technical Specs Nominal Torque Mn
0.037 N·m
Technical Specs Nominal Voltage
230 V
Technical Specs Note For Frequency
For 50 Hz operation. Not included in scope of delivery
Technical Specs Power
5 to 14 W
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP54)
Technical Specs Pull Out Torque Mk
0.046 N·m
Technical Specs Rated Current In
0.11 A
Technical Specs Starting Torque Ma
0.034 N·m
Technical Specs Weight M B 14 Din 42950
1.2 kg
