Key Slot Circuit Board Supports - 12 Series, .156 Hole
Key Slot Circuit Board Supports - 12 Series, .156 Hole
SKU:01C-376574
Premium Key Slot Circuit Board Supports for secure and stable board mounting. Easy installation, RoHS compliant.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Key Slot Circuit Board Supports - 12 Series, .156 Hole
$24.99
Quantity: 1
Claim Your Seller Account
Key Slot Circuit Board Supports - 12 Series, .156 Hole
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your circuit board projects with our premium Key Slot Circuit Board Supports from the 12 Series. Made of Nylon 66 UL94V-2 material for durability and reliability, these supports offer easy installation and removal for hassle-free repairs. With a board hole diameter of .156 inches and a temperature range of -40 to 185F, these supports provide secure and stable board mounting solutions. Compliant with RoHS standards, ASTM D 4066, and UL File No. E41938, our Key Slot Circuit Board Supports are essential for ensuring safety and performance in your electronic assemblies.
Product Specifications

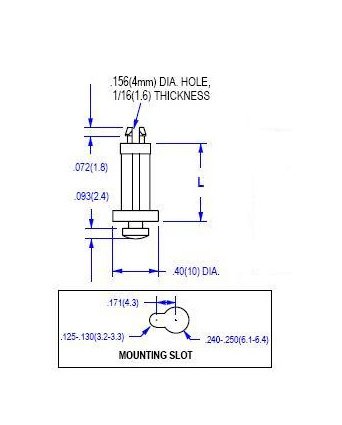

Specifications Board Hole Diameter
.156 (4.0) inches (mm)
Specifications Board Thickness
.062 (1.57) inches (mm)
Specifications Dim L
.500 (12.7) inches (mm)
Specifications Material Code
UL94V-2
Specifications Remarks Board Thickness
Board Thickness is for both ends.
