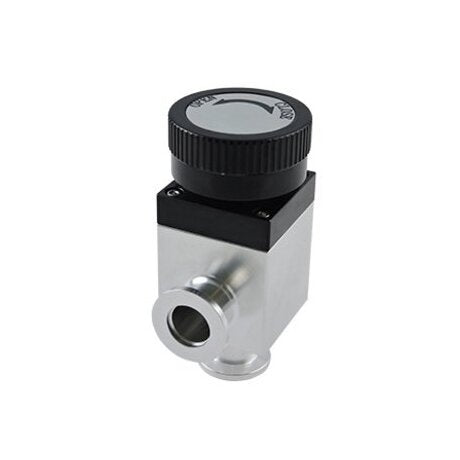

KF-25 Flange Size Aluminum Block Manual Angled Valve with Thick Bellows

Name: KF-25 Flange Size Aluminum Block Manual Angled Valve with Thick Bellows
Brand: Goldleaf Scientific
SKU: ALU-eb60b3
Price: 49.99 USD
Availability: OutOfStock

SKU:ALU-eb60b3

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

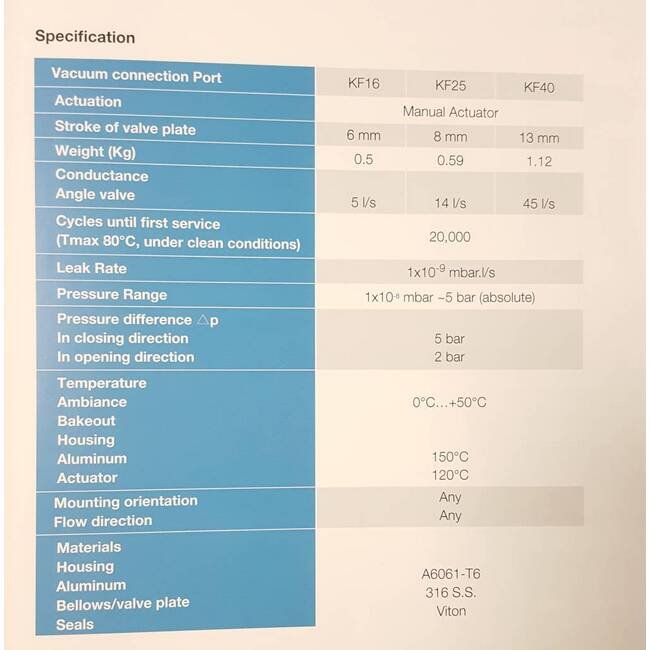

Product Specifications

Technical Specs Absolute Pressure Range

1 x 10-8 mbar ~ 5 bar

Technical Specs Actuation

Manual Actuator

Technical Specs Actuator Temperature

120 ºC

Technical Specs Aluminum Materials

A6061-T6

Technical Specs Aluminum Temperature

150 ºC

Technical Specs Ambient Temperature

0 to 50 ºC

Technical Specs Bellows Valve Plate Materials

316 Stainless Steel

Technical Specs Conductance Angle Vale

14 L/s

Technical Specs Cycles Until First Service Tmax 80 Degree Celsiu

20000

Technical Specs Flange Size

KF-25

Technical Specs Flow Direction

Any

Technical Specs Leak Rate

1 x 10-9 mbar·l/s

Technical Specs Mounting Orientation

Any

Technical Specs Pressure Difference P In Closing Direction

5 bar

Technical Specs Pressure Difference P In Opening Direction

2 bar

Technical Specs Seals Materials

Fluorocarbon (FKM)

Technical Specs Stroke For Valve Plate

8 mm

Technical Specs Weight

0.59 kg
