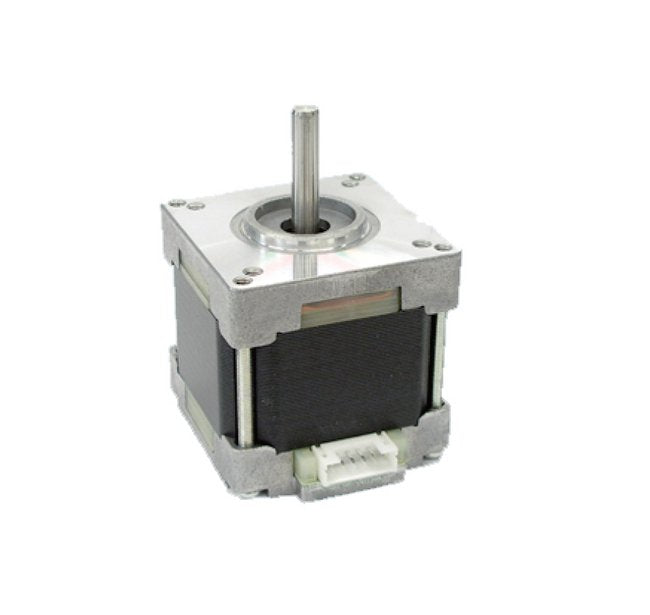

KF42 Series 42mm 2-Phase Stepper Motor (NEMA 17, 1.8°, 3.08V)
KF42 Series 42mm 2-Phase Stepper Motor (NEMA 17, 1.8°, 3.08V)
SKU:STE-e7a849
Explore the KF42 Series 42mm 2-Phase Stepper Motor for high torque & precision. NEMA 17, 1.8° step angle, 3.08V.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
KF42 Series 42mm 2-Phase Stepper Motor (NEMA 17, 1.8°, 3.08V)
$29.99
Quantity: 1
Claim Your Seller Account
KF42 Series 42mm 2-Phase Stepper Motor (NEMA 17, 1.8°, 3.08V)
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The KF42 Series 42mm 2-Phase Stepper Motor is crafted for precision and power. With a single shaft design and NEMA 17 motor frame size, it offers a step angle of 1.8°, holding torque of 400 mN·m, and a voltage of 3.08V. This stepper motor boasts high torque capabilities while maintaining a compact profile, making it ideal for applications in office automation, factory automation, money-handling & banking equipment, and medical devices.
Product Specifications
Additional Information 0
Connection Diagram for KF42 Series 42mm 2-Phase Stepper Motors (1.8 Degree/Step)
Customize 0
Custom Designs
Dimensions 0
KF42 Series 42mm 2-Phase Stepper Motors (1.8 Degree/Step) - 2 | KF42 Series 42mm 2-Phase Stepper Motors (1.8 Degree/Step) - 3
Specifications Ambient Temperature Range
-10 ~ +50 ºC
Specifications Applicable Housing
PHR-6
Specifications Applicable Terminal
SPH-002T-P0.5S
Specifications Application
Office Automation (OA)Factory Automation (FA)Money-handling & Banking equipmentMedical Devices
Specifications Current
1.4 A | 1.4
Specifications Dielectric Strength
500 V AC, 50 Hz for 1 min (at normal temp. & humidity, between lead and case)
Specifications Holding Torque
400 mN·m
Specifications Humidity Range For Ambient Temperature
5 ~ 95 % RH (noncondensing)
Specifications Humidity Range For Storage Temperature
5 ~ 95 % RH (noncondensing)
Specifications Insulation Resistance
100 MO min. at 500 V DC (at normal temp. & humidity, between lead and case)
Specifications Lead Wire
UL3266 AWG26
Specifications Length L
39 in | 1.54 mm
Specifications Maker
JST
Specifications Max Temperature Rise By Resistance Method
80 ºK
Specifications Motor Frame Size
NEMA 17
Specifications Motor Mass
0.29 kg
Specifications Note
The KF42 motor is supplied without a leadwire assembly. This must be ordered as a separate part.
Specifications Option
KV42LBS300
Specifications Position Accuracy
±10 %
Specifications Resistance
2.2 Ω
Specifications Rotor Inertia
100 g·cm²
Specifications Step Angle
1.8 º | 1.8 deg./step
Specifications Storage Temperature Range
-20 ~ +70 ºC
Specifications Type
Single Shaft
Specifications Voltage
3.08 V
Torque Curve 0
Speed - Torque Characteristics (KF4239-EN2B801, KF4239-EN2B802)
