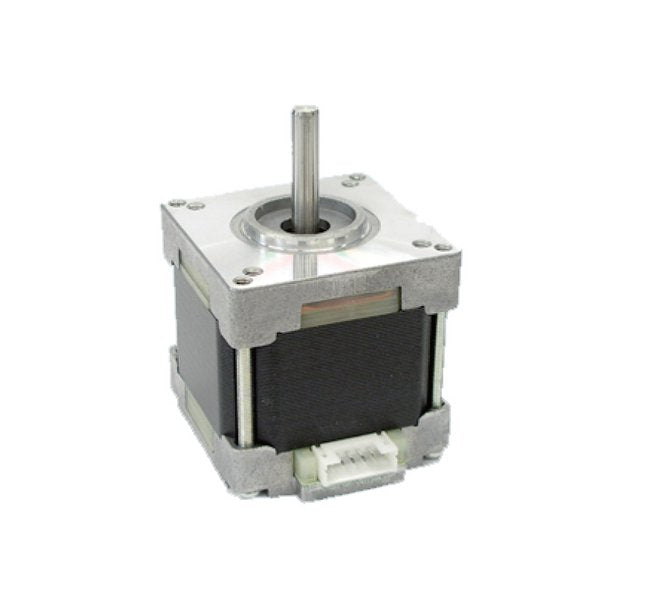

KF42 Series NEMA 17 Stepper Motor 5.36V - 42mm 2-Phase (1.8°/Step)
KF42 Series NEMA 17 Stepper Motor 5.36V - 42mm 2-Phase (1.8°/Step)
SKU:STE-b2e8fc
High-torque NEMA 17 stepper motor (5.36V) with 1.8° step angle for precise control in automation applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
KF42 Series NEMA 17 Stepper Motor 5.36V - 42mm 2-Phase (1.8°/Step)
$49.99
Quantity: 1
Claim Your Seller Account
KF42 Series NEMA 17 Stepper Motor 5.36V - 42mm 2-Phase (1.8°/Step)
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The KF42 Series NEMA 17 Stepper Motor boasts high torque in a compact profile by maximizing rotor diameter within a flattened structure. With a voltage of 5.36V and a current of 0.85A, this motor offers precise control with a step angle of 1.8°. Designed for applications in Office Automation, Factory Automation, Money-handling & Banking equipment, and Medical Devices, this motor ensures reliable performance. With a resistance of 6.3Ω and a holding torque of 460mN·m, it excels in various environments while maintaining high efficiency.
Product Specifications
Additional Information 0
Connection Diagram for KF42 Series 42mm 2-Phase Stepper Motors (1.8 Degree/Step)
Customize 0
Custom Designs
Dimensions 0
KF42 Series 42mm 2-Phase Stepper Motors (1.8 Degree/Step) - 2 | KF42 Series 42mm 2-Phase Stepper Motors (1.8 Degree/Step) - 3
Specifications Ambient Temperature Range
-10 ~ +50 ºC
Specifications Applicable Housing
PHR-6
Specifications Applicable Terminal
SPH-002T-P0.5S
Specifications Application
Office Automation (OA)Factory Automation (FA)Money-handling & Banking equipmentMedical Devices
Specifications Current
0.85 A | 0.85
Specifications Dielectric Strength
500 V AC, 50 Hz for 1 min (at normal temp. & humidity, between lead and case)
Specifications Holding Torque
460 mN·m
Specifications Humidity Range For Ambient Temperature
5 ~ 95 % RH (noncondensing)
Specifications Humidity Range For Storage Temperature
5 ~ 95 % RH (noncondensing)
Specifications Insulation Resistance
100 MO min. at 500 V DC (at normal temp. & humidity, between lead and case)
Specifications Lead Wire
UL3266 AWG26
Specifications Length L
42 in | 1.66 mm
Specifications Maker
JST
Specifications Max Temperature Rise By Resistance Method
80 ºK
Specifications Motor Frame Size
NEMA 17
Specifications Motor Mass
0.33 kg
Specifications Note
The KF42 motor is supplied without a leadwire assembly. This must be ordered as a separate part.
Specifications Option
KV42LBS300
Specifications Position Accuracy
±10 %
Specifications Resistance
6.3 Ω
Specifications Rotor Inertia
145 g·cm²
Specifications Step Angle
1.8 º | 1.8 deg./step
Specifications Storage Temperature Range
-20 ~ +70 ºC
Specifications Type
Single Shaft
Specifications Voltage
5.36 V
Torque Curve 0
Speed - Torque Characteristics (KF4242-EN2B801, KF4242-EN2B802)
