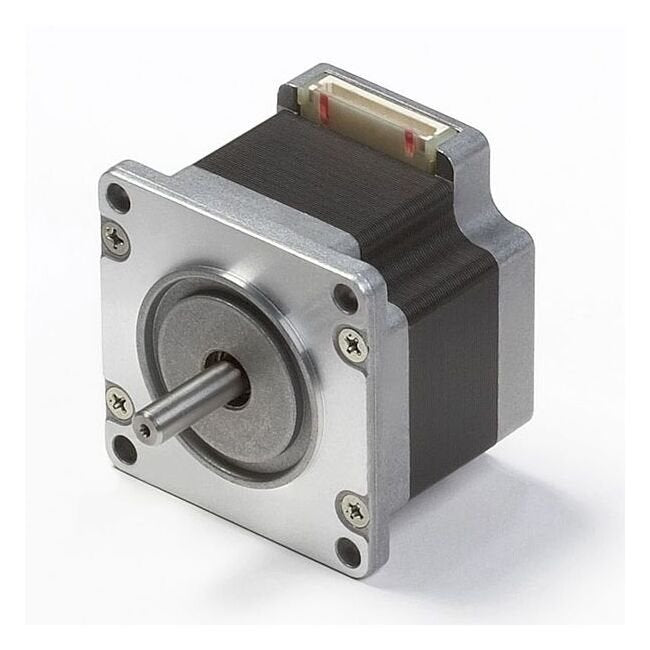

High-torque 2-Phase Hybrid Stepping Motor - NEMA 23, 1.8 deg./step, 7.42V, 1.4A, Bipolar
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
KH Series 2-Phase Hybrid Stepping Motor - 7.42V, 1.8 Degree/Step
$99.99
Quantity: 1
Claim Your Seller Account
KH Series 2-Phase Hybrid Stepping Motor - 7.42V, 1.8 Degree/Step
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The KH Series 2-Phase Hybrid Square Stepping Motor offers exceptional performance with a high torque output, exceeding peak time levels by 15-20%. With a NEMA 23 motor frame size, 1.0 kg mass, and 74mm motor length, it ensures reliable operation. Featuring a step angle of 1.8 degrees/step, holding torque of 2270 mN·m, and bipolar winding method, this motor guarantees precision and efficiency. It meets stringent standards for voltage, current, resistance, and environmental conditions, making it ideal for industrial and institutional applications.
Product Specifications
Additional Information 0
7
Customize 0
Custom Designs
Dimensions 0
8
Specifications Ambient Temperature Range
-10 ~ +50 ºC
Specifications Current Per Phase
1.4 A
Specifications Dielectric Strength
500 V AC, 50 Hz for 1 min (at normal temp. & humidity, between lead and case)
Specifications Holding Torque
2270 mN·m
Specifications Humidity Range For Ambient Temperature
5 ~ 95 % RH (noncondensing)
Specifications Humidity Range For Storage Temperature
5 ~ 95 % RH (noncondensing)
Specifications Inductance Per Phase
13.9 mH/PH
Specifications Insulation Resistance
500 V DC 100 MO min. (at normal temp. and humidity, between lead and case)
Specifications Max Temperature Rise By Resistance Method
70 ºK
Specifications Motor Frame Size
NEMA 23
Specifications Motor Length
74 in | 2.913 mm
Specifications Motor Mass
1.0 kg | 35.3 oz
Specifications Options Available
Lead wire Assembly (Part# 56B9(6)LBS300)
Specifications Position Accuracy
±10 %
Specifications Resistance Per Phase
5.3 Ω
Specifications Rotor Inertia
530 g·cm²
Specifications Series
2 Phase Square KH
Specifications Series Code
B900 Type KH56
Specifications Shaft Specification
Single Shaft
Specifications Step Angle
1.8 deg./step
Specifications Storage Temperature Range
-20 ~ +70 ºC
Specifications Type
2-Phase Hybrid Stepping Motor
Specifications Voltage Per Phase
7.42 V
Specifications Winding Method
Bipolar
Specifications Winding Resistance Per Phase
5.3 O
