The KH Series 2 Phase Hybrid Stepping Motor features an advanced Control System enabling high-speed operation up to 0.72, equivalent to 5 phase motors, with precise 0.009 deg division. Unique out-of-step position detection is offered for motor shaft speeds exceeding 500 rpm. This motor, available in square sizes 17 and 23, offers exceptional reliability and performance for a variety of applications.
Product Specifications
Additional Information 0
Allowable Radial Load and Allowable Thrust Load | Driver and Motor Selection Guide | Driver Picture | Explanation of Dynamic Torque Curves | Installation Location | KH56 Series 2-Phase Hybrid Stepping Motors (1.8 Degree/Step) - Nema 23 (KH56JM2) | Stepping Servos FWD Series | System Configuration | Torque Stepping Drawing
Customize 0
Custom Designs
Dimensions 0
Connection Diagrams | External Drawing of the Driver | Wiring Diagram
Specifications Applicable Motor
KH60JM2-951
Specifications Basic Resolution
0.72 in
Specifications Current
2.0 A
Specifications Dielectric Strength Motor Section
500VAC 50Hz 1min

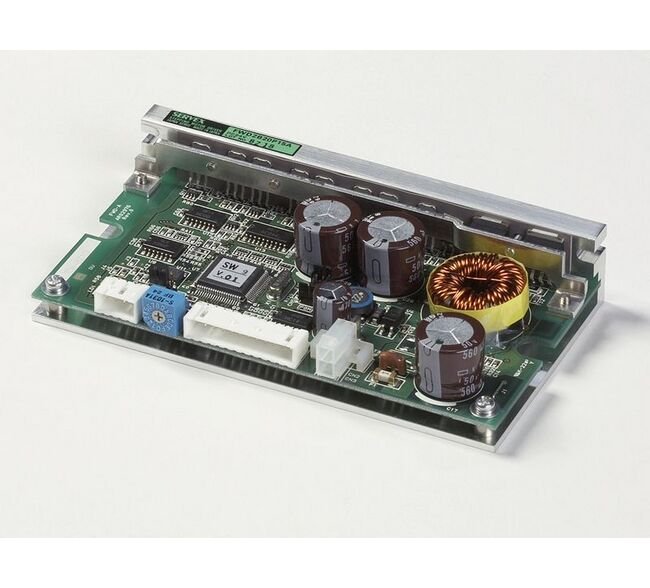

Specifications Driver Mass
0.51 lb
Specifications Excitation System
Basic Resolution (Step) | Micro Step (n=1, 2, 4, 8, 10, 20, 40, 80)
Specifications Insulation Class Motor Section
Equivalent to class
Specifications Insulation Resistance Motor Section
500VDC 100 MO min
Specifications Max Static Torque
918 mN·m | 130 oz.in
Specifications Motor Frame Size
60 x 60 mm | 2.362 x 2.362 in
Specifications Motor Mass
1.32 lb
Specifications No Of Phases
2
Specifications Power Specifications
24VDC, 4.0A
Specifications Rotor Inertia
3.89 x 103 oz·in²
Specifications Storage Ambient Humidity Driver Section
35~85 %
Specifications Storage Ambient Humidity Motor Section
10~85 %
Specifications Storage Ambient Temperature Driver Section
0~+50 ºC
Specifications Storage Ambient Temperature Motor Section
-20~+70 ºC
Specifications Type
2 Phase Hybrid Square KH Series
Specifications Working Ambient Humidity Driver Section
0~+50 ºC
Specifications Working Ambient Humidity Motor Section
15~85 %
Specifications Working Ambient Temperature Driver Section
0~+50 ºC
Specifications Working Ambient Temperature Motor Section
-10~+50 ºC
