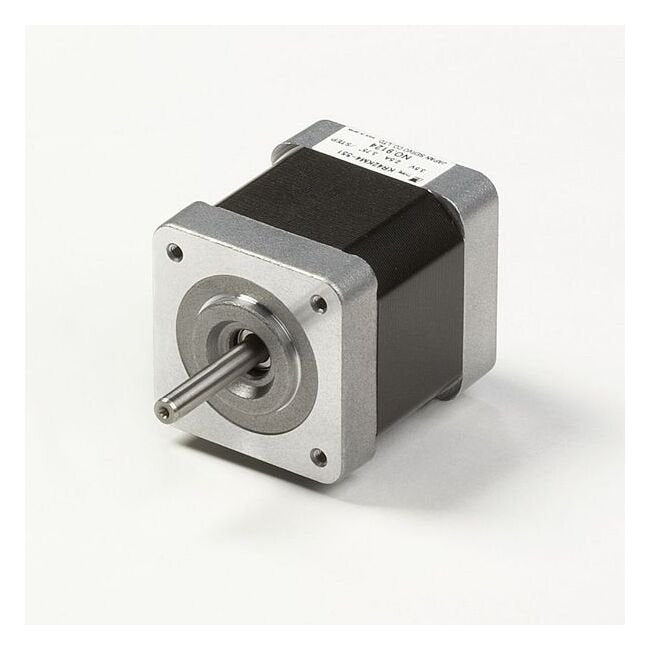

KH42 Series Hybrid Stepping Motor - Nema 17
KH42 Series Hybrid Stepping Motor - Nema 17
SKU:STE-3532d0
High-performance KH42 Series Hybrid Stepping Motor for precision and efficiency. Improved torque, reduced noise, and extended usability.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
KH42 Series Hybrid Stepping Motor - Nema 17
$49.99
Quantity: 1
Claim Your Seller Account
KH42 Series Hybrid Stepping Motor - Nema 17
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The KH42 Series Hybrid Type Stepping Motor is a high-performance solution designed for precision and efficiency. With improved dynamic torque, reduced vibration and noise levels, and enhanced efficiency, this motor delivers exceptional performance. Featuring a single shaft with strong torque and quieter operation, it offers extended usability with standardized specifications and higher speed capabilities. Ideal for a wide range of applications requiring reliability and superior motor performance.
Product Specifications
Additional Information 0
Driver Selection Guide | Explanation of Dynamic Torque Curves | Max. Allowable Load/Runout for Motor Shaft | Shaft Information
Customize 0
Custom Designs
Dimensions 0
Dimensions | Lead Wire Assembly | Semi Standard Model Dimensions
Specifications Ambient Temperature Range
-10 ~ +50 ºC
Specifications Current Per Phase
1.2 A
Specifications Detent Torque
2.3 oz·in | 16 mN·m
Specifications Dielectric Strength
500 VAC, 50 Hz for 1 minute (at normal temp. & humidity, between lead and case)
Specifications Holding Torque
340 mN·m | 48 oz·in
Specifications Humidity Range In Operation And Storage
5 ~ 95 % RH (noncondensing)
Specifications Inductance Per Phase
4.9 mH
Specifications Insulation Class
Class E equivalent
Specifications Insulation Resistance
100 MO min. at 500 V DC (at normal temp. & humidity, between lead and case)
Specifications Max Temperature Rise By Resistance Method
70 ºK
Specifications Motor Frame Size
NEMA 17
Specifications Motor Length
1.50 in | 38 mm
Specifications Motor Size
42
Specifications Note
Minimum Order Quantity May Apply
Specifications Options Available
Lead wire Assembly (Part# KH42LBS300)
Specifications Product Type
Stepper Motor
Specifications Resistance Per Phase
2.7 Ω
Specifications Rotor Inertia
48 B·cm² | 0.3 oz·in²
Specifications Series
2 Phase Square KH
Specifications Series Code
KH42
Specifications Shaft Length
0.79 in | 20 mm
Specifications Shaft Specification
Single Shaft
Specifications Step Angle
1.8 deg./step
Specifications Storage Temperature Range
-20 ~ +70 ºC
Specifications Type
42mm, 2-Phase Stepping Motors (1.8 Degree/Step) - Nema 17
Specifications Voltage Per Phase
3.24 V
Specifications Winding Method
Bipolar
Torque Curve 0
