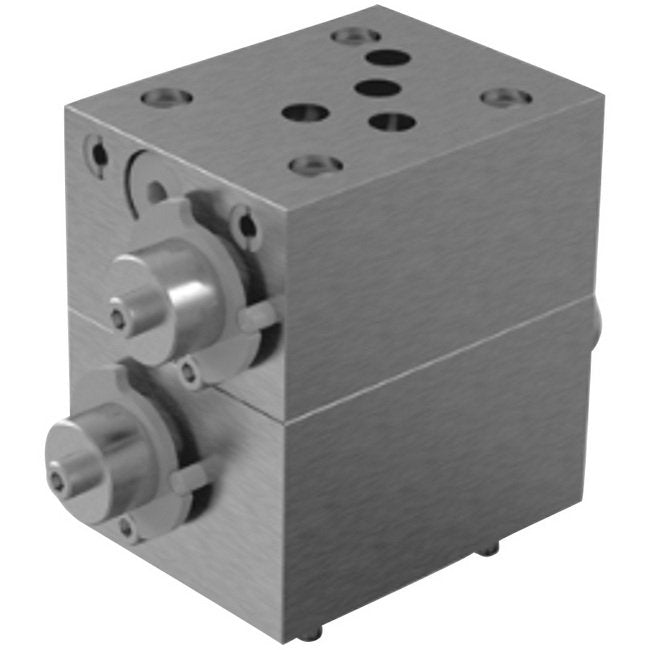

KHZ-DN10 Isolation Sandwich Valve
KHZ-DN10 Isolation Sandwich Valve
SKU:ACC-7f5100
Enhance hydraulic system maintenance with the KHZ-DN10 Isolation Sandwich Valve, ideal for high-pressure applications. CETOP and DIN certified for quality assurance.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
KHZ-DN10 Isolation Sandwich Valve
$89.99
Quantity: 1
Claim Your Seller Account
KHZ-DN10 Isolation Sandwich Valve
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The KHZ-DN10 Isolation Sandwich Valve is designed for efficient isolation and locking of directional valves on manifolds, reducing downtime during hydraulic system maintenance. Constructed from carbon steel with zinc plating, this valve is built to withstand high pressure up to 4569 psi. With a temperature range of -10°C to 80°C, and industry certifications including CETOP and DIN standards, this valve ensures reliable performance in demanding environments while facilitating quick repairs.
Product Specifications
Dimensions Overall Height
4.35 in | 110.5 mm
Dimensions Overall Length
5.63 in | 143 mm
Dimensions Overall Width
2.76 in | 70 mm
Specifications Ambient Operating Temperature Max
80 ºC | 176 ºF
Specifications Ambient Operating Temperature Min
-10 ºC | 14 ºF
Specifications Body Material
Carbon Steel
Specifications Division
ACCESSORIES
Specifications Industry Standardscertifications
CETOP, DIN 24340, DIN ISO 4402
Specifications Mounting Type
manifold
Specifications Operating Pressure Max
315 bar | 4569 psi
Specifications O Ring Material
Nitrile-Butadiene Rubber (NBR)
Specifications Plating
Zinc
Specifications Product
BALL VALVES
Specifications Product Group Family
BALL VALVES-HIGH PRESSURE (?3000 PSI)
Specifications Series
KHZ
Specifications Style
Sandwich Valve
Specifications Type
Isolation
Specifications Weight
5.35 kg | 11.80 lb
