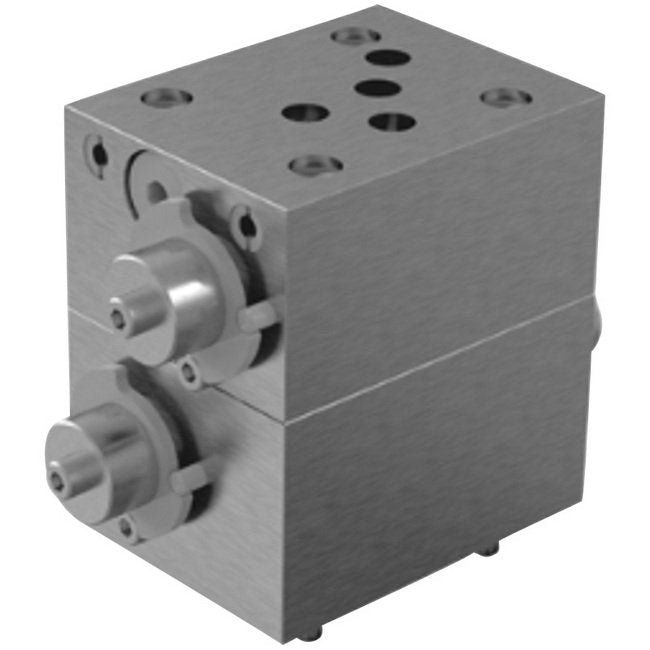

KHZ Sandwich Isolation Valve - High Pressure CETOP Certified
KHZ Sandwich Isolation Valve - High Pressure CETOP Certified
SKU:ACC-87043c
Enhance hydraulic systems with the KHZ Sandwich Isolation Valve - designed for reliability and compliance with high-pressure standards.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
KHZ Sandwich Isolation Valve - High Pressure CETOP Certified
$129.99
Quantity: 1
Claim Your Seller Account
KHZ Sandwich Isolation Valve - High Pressure CETOP Certified
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The KHZ Sandwich Isolation Valve is a crucial component for hydraulic systems, allowing isolation and locking of directional valves on manifolds. Crafted from durable Carbon Steel with Zinc plating, this valve ensures reliable performance under varying temperatures (-10°C to 80°C) and high pressures (up to 315 bar). Its Nitrile-Butadiene Rubber O-Ring provides a secure seal. Compliant with industry standards including CETOP, DIN 24340, and DIN ISO 4401, this valve minimizes downtime for repairs, maximizing system efficiency and meeting stringent procurement requirements.
Product Specifications
Dimensions Overall Height
3.01 in | 76.5 mm
Dimensions Overall Length
3.91 in | 99.3 mm
Dimensions Overall Width
1.89 in | 48 mm
Specifications Ambient Operating Temperature Max
80 ºC | 176 ºF
Specifications Ambient Operating Temperature Min
-10 ºC | 14 ºF
Specifications Body Material
Carbon Steel
Specifications Division
ACCESSORIES
Specifications Industry Standardscertifications
CETOP, DIN 24340, DIN ISO 4401
Specifications Mounting Type
manifold
Specifications Operating Pressure Max
315 bar | 4569 psi
Specifications O Ring Material
Nitrile-Butadiene Rubber (NBR)
Specifications Plating
Zinc
Specifications Product
BALL VALVES
Specifications Product Group Family
BALL VALVES-HIGH PRESSURE (?3000 PSI)
Specifications Series
KHZ
Specifications Style
Sandwich Valve
Specifications Type
Isolation
Specifications Weight
1.67 kg | 3.71 lb
