Kitz Check Class 125 Bronze Valve
Kitz Check Class 125 Bronze Valve
SKU:VAL-90c006
Premium Kitz Check Class 125 Bronze Valve for hose beds, with screw cap and swing type disc. Ideal for 125 PSI applications up to 406°F, meets ANSI and MSS standards.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
Kitz Check Class 125 Bronze Valve
$149.99
Quantity: 1
Claim Your Seller Account
Kitz Check Class 125 Bronze Valve
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Kitz Check Class 125 Bronze Valve is a high-quality valve suitable for hose bed applications. It features a screw cap design with integral seat and Y-pattern swing type disc for reliable performance. This valve is designed to withstand pressure up to 125 PSI for fluids up to 406°F, saturated steam up to 353°F, and 200 PSI for non-shock cold water, oil, or gas. Made from durable bronze material, it includes components like a cast bronze body, forged brass cap, and copper hinge pin for longevity and efficiency. Compliant with ANSI and MSS standards, this valve is a dependable choice for institutional and government buyers.
Product Specifications
Material List 0
No. Name Of Part Specification 1 Body Cast Bronze (ASTM B62) 2 Cap Forged Brass (B283, C37700) 4 Disc Cast Bronze (ASTM B62) 17 Hinge Pin Copper 18 Plug Brass Rod (B16)
Specifications Approx Net Wt
7.67
Specifications Carton Qty
6
Specifications Class
CYR

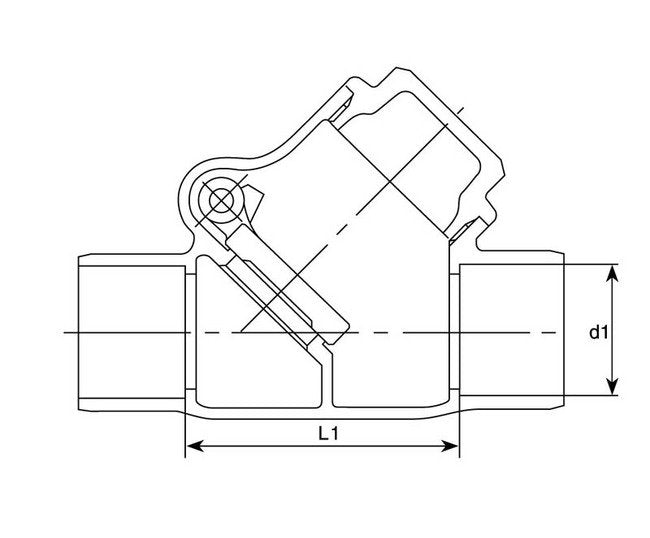

Specifications Dimension D1 Max
2.633
Specifications Dimension D1 Min
2.628
Specifications Dimension D2
2 1/2 inches
Specifications Dimension H
4.49
Specifications Dimension L
6.14
Specifications Dimension L1
4.69
Specifications End Size
Solder
Specifications Material
Bronze
Specifications Pressuretemperature
125 PSI - Fluid to 406°F | 125 PSI - Saturated Steam to 353°F | 200 PSI - Non-Shock Cold Water, Oil or Gas
Standard 0
End to End KITZ Threaded Ends ANSI B1.20.1 Solder Joint Ends ANSI B16.18 Design MSS SP-80, TYPE 3 Military MSS SP-80, TYPE 3
