KITZ Forged Brass Ball Valve - CSA Approved
KITZ Forged Brass Ball Valve - CSA Approved
SKU:VAL-81844e
Reliable KITZ Forged Brass Ball Valve - CSA Approved, perfect for demanding conditions and precise control. Pressure rated to 150 PSI - 600 PSI.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
KITZ Forged Brass Ball Valve - CSA Approved
$59.99
Quantity: 1
Claim Your Seller Account
KITZ Forged Brass Ball Valve - CSA Approved
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The KITZ Forged Brass Ball Valve is an exceptional choice for reliable and durable performance. With maintenance-free double O-ring stem seals, a full port design, chrome-plated vented ball, and blowout proof stem with Ni Plating, this valve ensures long-term operation in demanding conditions. Pressure rated for 150 PSI in Saturated Steam up to 366°F and 600 PSI in Non-Shock Cold Water, Oil, or Gas, it meets industry standards including CSA, UL, and FM certifications. Crafted from high-quality materials like forged brass and PTFE seats, this valve guarantees precision and efficiency in various applications, making it ideal for institutional and government procurement.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Material List 0

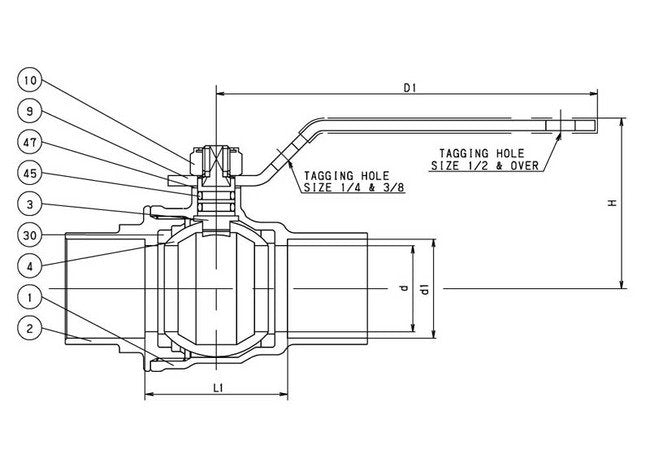

No. Name of Part Specification 1 Body Forged Brass (B283, C37700) 2 Body Cap Forged Brass (B283, C37700) 3 Stem Brass Rod (B16) (Ni Plating) 4 Ball (Vented) Forged Brass (B283, C37700) (CR. Plating) Straight or Hollow Ball 9 Handle Carbon Steel (Electroplated Zinc with Plastic Covering) 10 Handle Nut Carbon Steel 30 Ball Seats PTFE 45 O-rings FPM 47 Thrust Washer PBT
Specifications Approx Net Wt
71.00
Specifications Carton Qty
16
Specifications Class
CSZA
Specifications Dimension D
1.97
Specifications Dimension D1
5.90
Specifications Dimension D1 Max
2.133
Specifications Dimension D1 Min
2.128
Specifications Dimension D2
2 inches
Specifications Dimension H
2.83
Specifications Dimension L
4.33
Specifications Dimension L1
2.83
Specifications End Size
Solder
Specifications Material
Brass
Specifications Pressuretemperature
150 PSI - Saturated Steam to 366°F | 600 PSI - Non-Shock Cold Water, Oil or Gas
Specification 0
Approved valve shall have two piece forged brass body, blowout proof stem (Ni Plated), PTFE seats, maintenance free double o-ring stem seals, chrome plated ball and full port design. Valves shall be pressure rated to 150 WSP/600 WOG and conform to MSS-SP 110 and certified to CSA, UL & FM.KITZ Code No. 58 (AKSZA) Threaded Ends59 (CSZA) Solder Ends
Standard 0
End to End KITZ Threaded Ends ANSI B1.20.1 Solder Joint Ends ANSI B16.18 Wall Thickness KITZ Conforms to MSS-SP 110 - Replaces us. FED.Spec. WWW-V-35B, Type II, Class A, Style 3
