Kitz Gate Class 150 Bronze Valve

Kitz Gate Class 150 Bronze Valve

VAL-b9420f

Reliable Kitz Gate Class 150 Bronze Valve for various applications, meeting C150L standards with Screw-In-Bonnet design and durable Cast Bronze construction.

$189.99
$189.99
Sale

Initiate Order

Kitz Gate Class 150 Bronze Valve

Kitz Gate Class 150 Bronze Valve

$189.99

Quantity: 1

Claim Your Seller Account

Kitz Gate Class 150 Bronze Valve

Kitz Gate Class 150 Bronze Valve

$189.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Kitz Gate Class 150 Bronze Valve is a high-quality valve suitable for diverse applications. Featuring a Screw-In-Bonnet design with a Rising Stem and Solid Wedge Disc, this valve ensures reliable performance and durability. With specifications meeting Class C150L standards, and designed for End Size Solder connections, it operates at pressures up to 150 PSI for fluids up to 406°F, 150 PSI for Saturated Steam up to 366°F, and 300 PSI for Non-shock Cold Water, Oil, or Gas. Manufactured with precision using Cast Bronze materials, this valve also includes components like Cast Bronze Bonnet, Stem, and Disc, ensuring longevity and efficiency. Compliant with industry standards including MSS SP-80 and military specifications, this valve is a dependable choice for both consumer and institutional buyers.

Product Specifications

Material List 0
No. Name of Part Specification 1 Body Cast Bronze (ASTM B62) 2 Bonnet Cast Bronze (ASTM B62) 3 Stem Cast Bronze (ASTM B62) 4 Disc Cast Bronze (ASTM B62) 6 Packing Nut Forged Brass (B283, C37700) 7 Gland Brass Rod (B16) 8 Gland Packing Aramid Fibers with Graphite 9 Hand Wheel (1/2 – 1) Zinc Die-Cast (B86) (11/4 – 3) Aluminum Die-cast (B85) 10 Wheel Nut Brass Rod (B16) 16 Name Plate Aluminum
Specifications Approx Net Wt
6.38
Specifications Carton Qty
8
Specifications Class
C150L

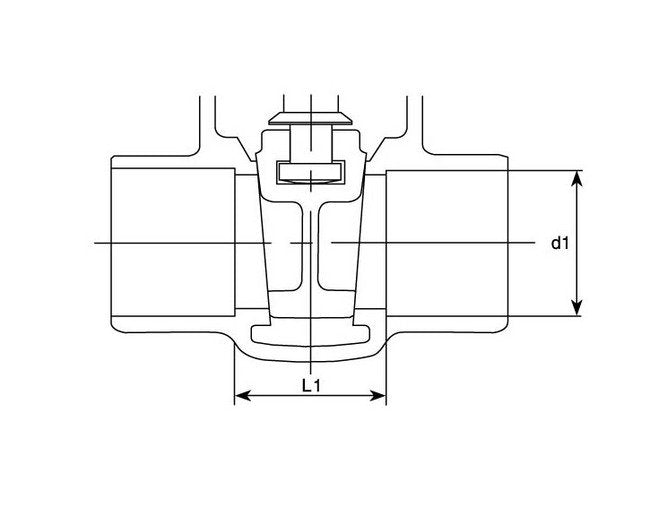

Specifications Dimension D1
3.94
Specifications Dimension D1 Max
2.133
Specifications Dimension D1 Min
2.128
Specifications Dimension D2
2 inches
Specifications Dimension H
11.65
Specifications Dimension L
3.31
Specifications Dimension L1
1.61
Specifications End Size
Solder
Specifications Material
Bronze
Specifications Pressuretemperature
150 PSI - Fluid to 406°F | 150 PSI - Saturated Steam to 366°F | 300 PSI - Non-shock Cold Water, Oil or Gas
Standard 0
End to End KITZ Threaded Ends ANSI B1.20.1 Solder Joint Ends ANSI B16.18 Design MSS SP-80, TYPE 2 Military MSS SP-80, TYPE 2
