Kitz Gate Class 150 Bronze Valve

Kitz Gate Class 150 Bronze Valve

VAL-757b6a

High-performance Kitz Gate Valve, Class 150, Bronze construction, ideal for hose beds applications.

$129.99
$129.99
Sale

Initiate Order

Kitz Gate Class 150 Bronze Valve

Kitz Gate Class 150 Bronze Valve

$129.99

Quantity: 1

Claim Your Seller Account

Kitz Gate Class 150 Bronze Valve

Kitz Gate Class 150 Bronze Valve

$129.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Kitz Gate Class 150 Bronze Valve is a top-quality valve designed for durability and high performance. It features a screw-in bonnet, rising stem, and solid wedge disc, ensuring reliable operation in demanding environments. With a pressure rating of 150 PSI for various fluids and temperatures up to 406°F, this valve is ideal for hose beds applications. Constructed from high-grade bronze materials, it offers exceptional durability and resistance to corrosion. Compliant with ANSI, MSS SP-80, and military standards, this valve meets the stringent requirements of government and institutional buyers.

Product Specifications

Material List 0
No. Name of Part Specification 1 Body Cast Bronze (ASTM B62) 2 Bonnet Cast Bronze (ASTM B62) 3 Stem Cast Bronze (ASTM B62) 4 Disc Cast Bronze (ASTM B62) 6 Packing Nut Forged Brass (B283, C37700) 7 Gland Brass Rod (B16) 8 Gland Packing Aramid Fibers with Graphite 9 Hand Wheel (1/2 – 1) Zinc Die-Cast (B86) (11/4 – 3) Aluminum Die-cast (B85) 10 Wheel Nut Brass Rod (B16) 16 Name Plate Aluminum
Specifications Approx Net Wt
4.33
Specifications Carton Qty
12
Specifications Class
C150L

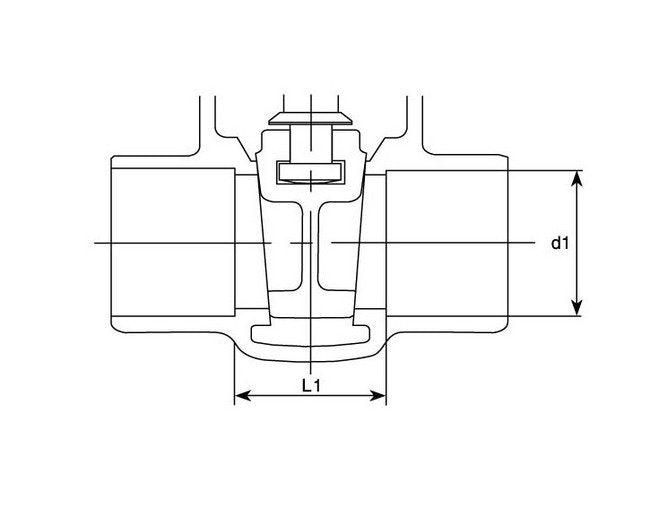

Specifications Dimension D1
3.54
Specifications Dimension D1 Max
1.633
Specifications Dimension D1 Min
1.628
Specifications Dimension D2
1 1/2 inches
Specifications Dimension H
10.12
Specifications Dimension L
2.91
Specifications Dimension L1
1.21
Specifications End Size
Solder
Specifications Material
Bronze
Specifications Pressuretemperature
150 PSI - Fluid to 406°F | 150 PSI - Saturated Steam to 366°F | 300 PSI - Non-shock Cold Water, Oil or Gas
Standard 0
End to End KITZ Threaded Ends ANSI B1.20.1 Solder Joint Ends ANSI B16.18 Design MSS SP-80, TYPE 2 Military MSS SP-80, TYPE 2
