Kitz Gate Class 150 Bronze Valve
Kitz Gate Class 150 Bronze Valve
SKU:VAL-75b109
Reliable Kitz Gate Class 150 Bronze Valve for precise flow control and durability in industrial settings.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
Kitz Gate Class 150 Bronze Valve
$399.99
Quantity: 1
Claim Your Seller Account
Kitz Gate Class 150 Bronze Valve
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Kitz Gate Class 150 Bronze Valve is a top-tier choice for industrial applications requiring durability and reliability. Featuring a Screw-In-Bonnet design with a Rising Stem and Solid Wedge Disc, this valve ensures precise flow control and minimal maintenance requirements. Meeting Class C150L standards, this valve is suitable for various fluids and temperatures up to 406°F, making it a versatile and robust solution for critical operations. With a bronze construction and compliant with industry regulations, the Kitz Gate Valve guarantees longevity and high performance.
Product Specifications
Material List 0
No. Name of Part Specification 1 Body Cast Bronze (ASTM B62) 2 Bonnet Cast Bronze (ASTM B62) 3 Stem Cast Bronze (ASTM B62) 4 Disc Cast Bronze (ASTM B62) 6 Packing Nut Forged Brass (B283, C37700) 7 Gland Brass Rod (B16) 8 Gland Packing Aramid Fibers with Graphite 9 Hand Wheel (1/2 â 1) Zinc Die-Cast (B86) (11/4 â 3) Aluminum Die-cast (B85) 10 Wheel Nut Brass Rod (B16) 16 Name Plate Aluminum
Specifications Approx Net Wt
14.75
Specifications Carton Qty
4
Specifications Class
C150L

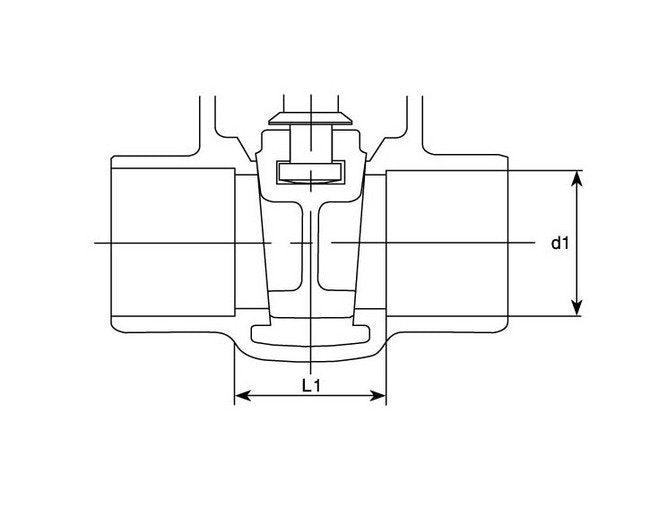

Specifications Dimension D1
6.10
Specifications Dimension D2
2 1/2 inches
Specifications Dimension H
15.16
Specifications Dimension L
4.72
Specifications End Size
Solder
Specifications Material
Bronze
Specifications Pressuretemperature
150 PSI - Fluid to 406°F | 150 PSI - Saturated Steam to 366°F | 300 PSI - Non-shock Cold Water, Oil or Gas
Standard 0
End to End KITZ Threaded Ends ANSI B1.20.1 Solder Joint Ends ANSI B16.18 Design MSS SP-80, TYPE 2 Military MSS SP-80, TYPE 2
