KITZ Gate Class 150 Bronze Valve with Screw-In Bonnet

KITZ Gate Class 150 Bronze Valve with Screw-In Bonnet

VAL-197c06

High-performance KITZ Gate Class 150 Bronze Valve with screw-in bonnet, ideal for precise fluid control in hose beds and critical applications.

$89.99
$89.99
Sale

Initiate Order

KITZ Gate Class 150 Bronze Valve with Screw-In Bonnet

KITZ Gate Class 150 Bronze Valve with Screw-In Bonnet

$89.99

Quantity: 1

Claim Your Seller Account

KITZ Gate Class 150 Bronze Valve with Screw-In Bonnet

KITZ Gate Class 150 Bronze Valve with Screw-In Bonnet

$89.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The KITZ Gate Class 150 Bronze Valve is a robust solution for fluid control applications, featuring a screw-in bonnet, rising stem, and solid wedge disc. Constructed with high-quality cast bronze material, this valve ensures durability and reliability in various environments. With threaded end sizing and pressure tolerance up to 150 PSI for fluids and saturated steam, this valve meets strict industry standards for performance and longevity. Ideal for hose beds and other critical applications where precision flow control is essential.

Product Specifications

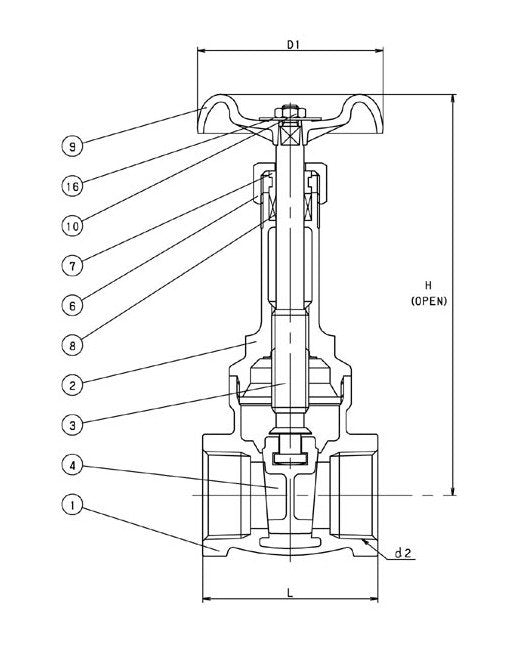

Material List 0
No. Name of Part Specification 1 Body Cast Bronze (ASTM B62) 2 Bonnet Cast Bronze (ASTM B62) 3 Stem Cast Bronze (ASTM B62) 4 Disc Cast Bronze (ASTM B62) 6 Packing Nut Forged Brass (B283, C37700) 7 Gland Brass Rod (B16) 8 Gland Packing Aramid Fibers with Graphite 9 Hand Wheel (1/2 – 1) Zinc Die-Cast (B86) (11/4 – 3) Aluminum Die-cast (B85) 10 Wheel Nut Brass Rod (B16) 16 Name Plate Aluminum
Specifications Approx Net Wt
1.50
Specifications Carton Qty
36
Specifications Class
AK150L
Specifications Dimension D1
2.76
Specifications Dimension D1 Max
0.881
Specifications Dimension D1 Min
0.877
Specifications Dimension D2
3/4 inches
Specifications Dimension H
6.18
Specifications Dimension L
2.20
Specifications Dimension L1
1.02
Specifications End Size
Threaded
Specifications Material
Bronze
Specifications Pressuretemperature
150 PSI - Fluid to 406°F | 150 PSI - Saturated Steam to 366°F | 300 PSI - Non-shock Cold Water, Oil or Gas
Standard 0
End to End KITZ Threaded Ends ANSI B1.20.1 Solder Joint Ends ANSI B16.18 Design MSS SP-80, TYPE 2 Military MSS SP-80, TYPE 2
