KITZ Gate Valve Class 150 Bronze, Solder End, 1 inch
KITZ Gate Valve Class 150 Bronze, Solder End, 1 inch
SKU:VAL-daff5f
Reliable KITZ Gate Valve Class 150 Bronze for efficient fluid control in various applications. Durable and performance-driven, ideal for industrial and institutional use.
Regular price
$109.99
Regular price
Sale price
$109.99
Unit price
per
Initiate Order
KITZ Gate Valve Class 150 Bronze, Solder End, 1 inch
$109.99
Quantity: 1
Claim Your Seller Account
KITZ Gate Valve Class 150 Bronze, Solder End, 1 inch
$109.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The KITZ Gate Valve Class 150 Bronze is a reliable valve designed for various applications. With features like Screw-In-Bonnet, Rising Stem, and Solid Wedge Disc, this valve ensures efficient fluid control. Meeting ANSI and MSS standards, it is suitable for diverse environments, including fluid, steam, water, oil, and gas systems. Crafted from high-quality Bronze materials, this valve guarantees durability and performance. Perfect for hose bed applications, this valve is a top choice for industrial and institutional procurement needs.
Product Specifications
Material List 0
No. Name of Part Specification 1 Body Cast Bronze (ASTM B62) 2 Bonnet Cast Bronze (ASTM B62) 3 Stem Cast Bronze (ASTM B62) 4 Disc Cast Bronze (ASTM B62) 6 Packing Nut Forged Brass (B283, C37700) 7 Gland Brass Rod (B16) 8 Gland Packing Aramid Fibers with Graphite 9 Hand Wheel (1/2 â 1) Zinc Die-Cast (B86) (11/4 â 3) Aluminum Die-cast (B85) 10 Wheel Nut Brass Rod (B16) 16 Name Plate Aluminum
Specifications Approx Net Wt
1.72
Specifications Carton Qty
24
Specifications Class
C150L

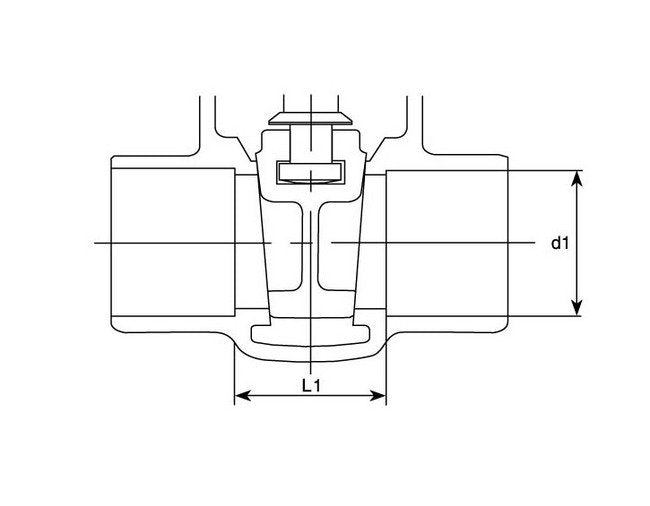

Specifications Dimension D1
2.76
Specifications Dimension D1 Max
1.132
Specifications Dimension D1 Min
1.128
Specifications Dimension D2
1 inches
Specifications Dimension H
7.09
Specifications Dimension L
2.60
Specifications Dimension L1
1.17
Specifications End Size
Solder
Specifications Material
Bronze
Specifications Pressuretemperature
150 PSI - Fluid to 406°F | 150 PSI - Saturated Steam to 366°F | 300 PSI - Non-shock Cold Water, Oil or Gas
Standard 0
End to End KITZ Threaded Ends ANSI B1.20.1 Solder Joint Ends ANSI B16.18 Design MSS SP-80, TYPE 2 Military MSS SP-80, TYPE 2
