Kitz Gate Valve Class 150 Bronze Threaded End 1-1/4 Inch
Kitz Gate Valve Class 150 Bronze Threaded End 1-1/4 Inch
SKU:VAL-66ebf8
Reliable Kitz Gate Valve Class 150 Bronze for high-pressure applications. Features Screw-In-Bonnet and rising stem design.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
Kitz Gate Valve Class 150 Bronze Threaded End 1-1/4 Inch
$99.99
Quantity: 1
Claim Your Seller Account
Kitz Gate Valve Class 150 Bronze Threaded End 1-1/4 Inch
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Kitz Gate Class 150 Bronze Valve is a high-quality valve suitable for various applications, featuring a Screw-In-Bonnet design, rising stem for easy operation, and a solid wedge disc for secure shut-off. With a pressure/temperature rating of 150 PSI for fluids up to 406°F and saturated steam up to 366°F, this valve ensures reliable performance in demanding conditions. Made of durable bronze materials and meeting ANSI, MSS, and military standards, this valve is built to deliver lasting performance and reliability.
Product Specifications

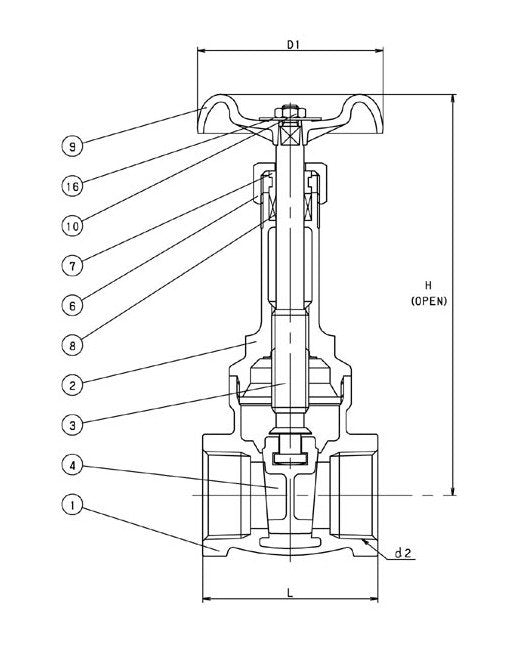

Material List 0
No. Name of Part Specification 1 Body Cast Bronze (ASTM B62) 2 Bonnet Cast Bronze (ASTM B62) 3 Stem Cast Bronze (ASTM B62) 4 Disc Cast Bronze (ASTM B62) 6 Packing Nut Forged Brass (B283, C37700) 7 Gland Brass Rod (B16) 8 Gland Packing Aramid Fibers with Graphite 9 Hand Wheel (1/2 â 1) Zinc Die-Cast (B86) (11/4 â 3) Aluminum Die-cast (B85) 10 Wheel Nut Brass Rod (B16) 16 Name Plate Aluminum
Specifications Approx Net Wt
3.88
Specifications Carton Qty
16
Specifications Class
AK150L
Specifications Dimension D1
3.15
Specifications Dimension D1 Max
1.382
Specifications Dimension D1 Min
1.378
Specifications Dimension D2
1 1/4 inches
Specifications Dimension H
8.50
Specifications Dimension L
2.68
Specifications Dimension L1
1.29
Specifications End Size
Threaded
Specifications Material
Bronze
Specifications Pressuretemperature
150 PSI - Fluid to 406°F | 150 PSI - Saturated Steam to 366°F | 300 PSI - Non-shock Cold Water, Oil or Gas
Standard 0
End to End KITZ Threaded Ends ANSI B1.20.1 Solder Joint Ends ANSI B16.18 Design MSS SP-80, TYPE 2 Military MSS SP-80, TYPE 2
