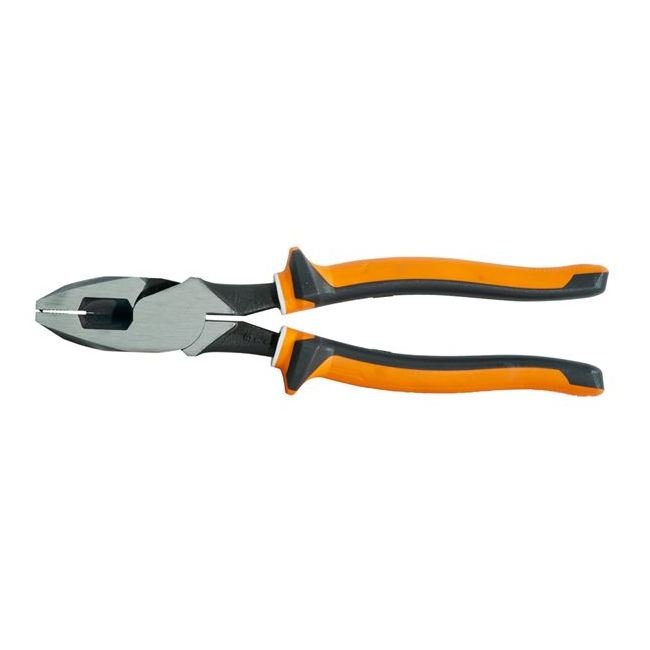

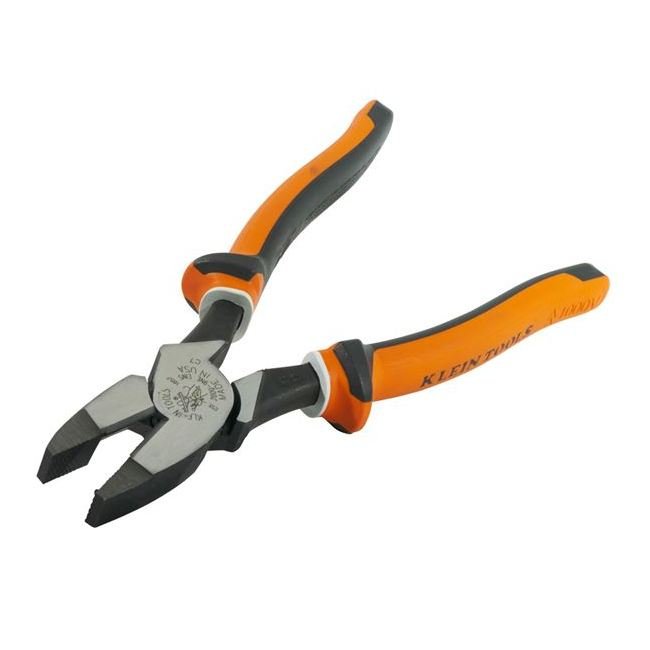

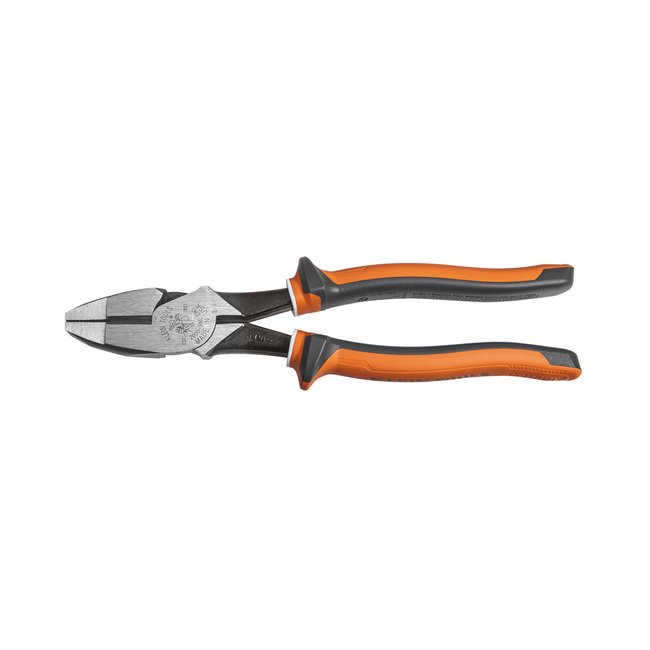

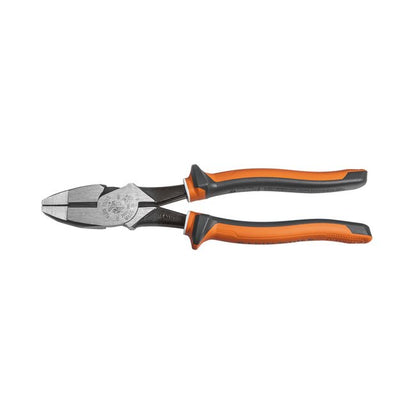

Klein® 9-5/8 in. Insulated High-Leverage Side Cutting Plier
Klein® 9-5/8 in. Insulated High-Leverage Side Cutting Plier
SKU:TOO-78bddb
Certified 1000V Klein® Insulated Side-Cutting Plier with 3-Part Insulation, Crimping Die, & Hot-Riveted Joint for Safety & Versatility
Regular price
$54.99
Regular price
Sale price
$54.99
Unit price
per
Initiate Order
Klein® 9-5/8 in. Insulated High-Leverage Side Cutting Plier
$54.99
Quantity: 1
Claim Your Seller Account
Klein® 9-5/8 in. Insulated High-Leverage Side Cutting Plier
$54.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Klein® 9-5/8 in. Insulated High-Leverage Side Cutting Plier is a VDE certified, 1000V rated tool designed for maximum safety in electrical work environments. Featuring a three-part insulation with a white underlayer for visual safety indication, this tool meets stringent IEC 60900 and ASTM F1505 standards. The induction-hardened steel construction ensures durability, while the crimping die and side-cutting capability make it versatile for tasks like cutting ACSR, screws, nails, and hardened wire. With a hot-riveted joint and a streamlined design, this plier offers superior leverage and ergonomic handling, making it an essential addition for electrical professionals seeking reliability and safety compliance.
Product Specifications
Application
Cuts ACSR, Screws, Nails, and Most Hardened Wire
Dimensions Jaw Length
1-19/32 in | 40.5 mm
Dimensions Jaw Thickness
1-19/32 in | 40.5 mm
Dimensions Jaw Width
1-5/16 in | 33.3 mm
Dimensions Knife Length
25/32 in | 19.8 mm
Dimensions Overall Length
9-5/8 in | 244.5 mm
Features
"Crimping die behind hinge for superior leverage when crimping non-insulated connectors, lugs and terminals" "Cuts ACSR, screws, nails and most hardened wires" "Streamlined design with sure-gripping, cross-hatched knurled jaw Unique three-part insulation with white underlayer provides a warning sign that insulation may be compromised "Multi-color, sleek design with small thumb guards for ease of handling and easy storage in your tool belt" "Whenever possible, always de-energize lines and equipment prior to working on or around them. Klein® insulated tools are designed only to reduce the chance of injury where the tool may make contact with an energized source." "Only use tools that are marked with the official international 1000-volt rating symbol shown below, if there is any chance that the tools will make contact with an energized source." Always inspect your tools before use. Do NOT touch uninsulated portion of the tool or any conductive object when either might contact an energized source. "Keep tool clean, dry and free of any surface contaminants." Destroy tool if the insulation is damaged in any way.
Specifications Brand
Klein®
Specifications Cut Style
Side-Cutting
Specifications Handle Color
Orange/Gray
Specifications Handle Finish
3-Layer
Specifications Industry Standardscertifications
IEC 60900, ASTM F1505, VDE certified
Specifications Insulated
Yes
Specifications Joint Type
Hot Riveted
Specifications Material
Induction Hardened Steel
Specifications Nose Type
New England
Specifications Rated Voltage
1000 V
Specifications Style
High-Leverage Plier
Specifications Type
Insulated Side-Cutting Plier
Specifications Unspsc Code
27112135
Specifications Upc Code
92644701948
Specifications Weight
0.6 kg | 1.30 lb
