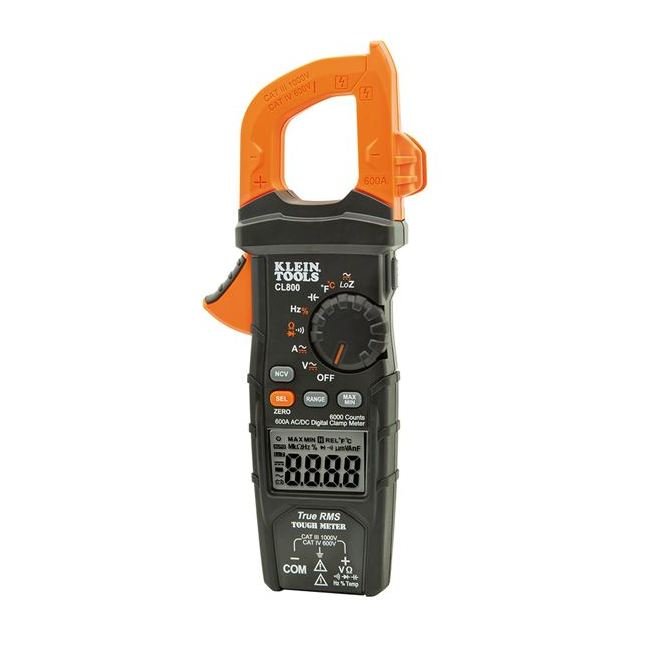

Klein® CL800 Digital Clamp Meter with TRMS Technology
Klein® CL800 Digital Clamp Meter with TRMS Technology
SKU:TOO-69e27f
Klein® CL800 Digital Clamp Meter: TRMS technology, versatile functions, rugged design. Ideal for electricians and professionals.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Klein® CL800 Digital Clamp Meter with TRMS Technology
$129.99
Quantity: 1
Claim Your Seller Account
Klein® CL800 Digital Clamp Meter with TRMS Technology
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Klein® CL800 is a versatile digital clamp meter featuring true root mean squared (TRMS) technology for highly accurate measurements of AC/DC voltage, resistance, continuity, frequency, capacitance, and diode testing. It includes a thermocouple probe for temperature measurements and a Low Impedance (LoZ) mode to detect ghost voltages. With a rugged design designed by electricians, this meter is built to endure a 6.6 ft drop and meets CAT IV 600V safety standards. Ideal for electricians and professionals, it comes with a carrying case, test leads, and batteries for immediate use.
Product Specifications
Application
Measures Current
Dimensions Jaw Size
1-3/8 in | 34.9 mm
Dimensions Overall Height
9-3/32 in | 231.0 mm
Dimensions Overall Length
1-35/64 in | 39.3 mm
Dimensions Overall Width
3-13/16 in | 96.8 mm
Features
Automatically ranging true mean squared (TRMS) technology for increased accuracy.Thermocouple probe measures temperature.Low Impedance (LoZ) mode for identifying and eliminating ghost or stray voltages."CAT IV 600 V, CAT III 1000 V, Class 2, Double insulation safety rating".Built to withstand a 6.6' (2 m) drop.Low battery indicator and easily accessible battery compartment.Operating temp: 32º F to 104º F (0º C to 40º C)."Includes carrying pouch, test leads, thermocouple with adapter and batteries".Do not attempt to measure resistance or continuity on live circuits.Before each use verify meter operation by measuring a known voltage or current.Features Low Battery Indicator.
Note
Read, understand and follow all instructions, cautions and warnings attached to and /or packed with all test and measurement devices before each use.
Specifications Alternate Current Ac Current
600 A
Specifications Alternate Current Ac Voltage
1000 V
Specifications Batteries
2
Specifications Brand
Klein®
Specifications Capacitance
6000 µF
Specifications Direct Current Dc Current
600 A
Specifications Direct Current Dc Voltage
1000 V
Specifications Display
6000 Count Liquid Crystal Display (LCD)
Specifications Drop Protection
6.6 ft | 2 m
Specifications Functions
Test Leads Measure Alternating Current (AC)/Direct Current (DC) Voltage, Resistance, Continuity, Frequency and Capacitance and Tests Diodes.
Specifications Includes

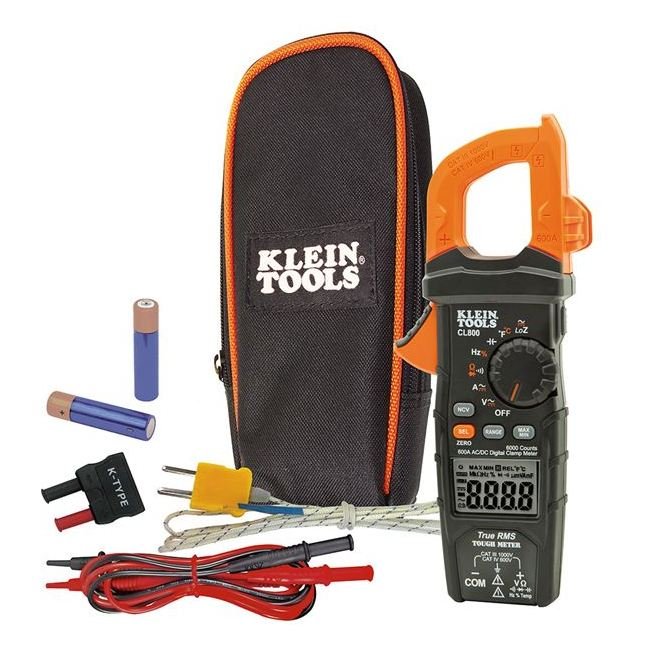

Carrying Case, 41 (1041.4 mm) Test Leads, Thermocouple with Adapter, and Batteries
Specifications Ingress Protection
IP40
Specifications Operating Altitude
6562 ft | 2000 m
Specifications Power Supply
AAA
Specifications Resistance
60 MO
Specifications Standard
CAT IV 600 V, Conformity European (CE) Certified
Specifications Temperature Max
40 ºC | 104 ºF
Specifications Temperature Min
0 ºC | 32 ºF
Specifications Tempertaure Range
-26 to 538 ºC | -14 to 1000 ºF
Specifications Type
Digital Clamp Meter
Specifications Unspsc Code
41113654
Specifications Upc Code
92644690167
Specifications Weight
0.35 kg | 0.77 lb
