Klein VDV Commander Cable Length Tester
Klein VDV Commander Cable Length Tester
SKU:TOO-3acf7a
Accurate and efficient cable length tester with PoE detection for seamless installations.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Klein VDV Commander Cable Length Tester
$249.99
Quantity: 1
Claim Your Seller Account
Klein VDV Commander Cable Length Tester
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

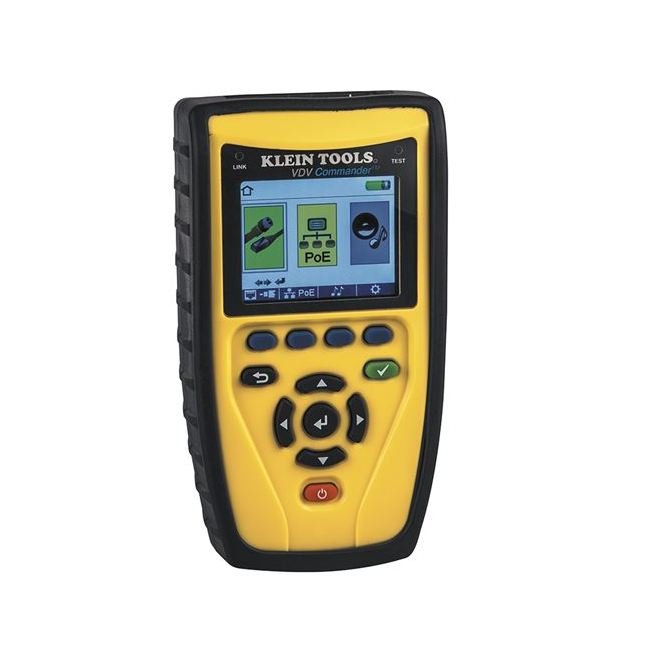

The Klein VDV Commander Test-n-Map Tester is a top-of-the-line voice/data/video cable tester designed for efficient and accurate installations. With capabilities to locate, test, and measure coax, data, and telephone cables up to 1500 ft, this tester ensures precise results. Featuring Power over Ethernet (PoE) detection, miswire fault detection, shield detection, and more, it provides comprehensive testing solutions for institutional and government procurement needs. The Test-n-Map ID Remotes allow for easy report management and streamlined cable testing processes.
Product Specifications
Application
Locate, test and measure coaxial, data (RJ45) and telephone (RJ11) cables
Dimensions Overall Height
6-51/64 in | 172.6 mm
Dimensions Overall Length
4-3/8 in | 111.1 mm
Features
"Identify wiring faults including miswire, open, short, split-pair, reverse-pair and verify shielding.""Detect, identify and test Power over Ethernet (PoE)."Measure cable length and distance to a fault with Time Domain Reflectometry (TDR) technology."Measure paired-conductor cables up to 1,500 ft. (457 m) with accuracy of up to ± (5% and 1 ft./0.3 m)."Single-end cable testing or complete two-end cable testing with Test-n-Map ID Remotes.Perform active network (Ethernet) testing -- detect capabilities and connection speeds."Locate and identify cables with location ID remotes, Test-n-Map ID remotes, Link Light and Tone Generator."Test and identify location in one step (two-end testing) with Test-n-Map ID remotes (RJ45 and RJ12 ports) - supports up to 8 remotes."Multiple style (4 cadences) tone generator capable of sending a tone on a single conductor, a conductor pair or over all conductors. Kit includes required PROBEplus Tone Tracing Probe (VDV500-060)."Always wear approved eye protection.Do NOT use on energized circuits."Accuracy/Measurement Resolution, Active Ethernet Detects Link Speed and Capabilities to 1 Gbps; Customizable Setup; Imperial or Metric Results, Multiple Languages: English/Spanish/French; Single-End Cable Testing"
Note
Read, understand and follow all instructions, cautions and warnings attached to and/or packed with all test and measurement devices before each use.
Specifications Accuracy
±(5% and 1 ft/0.3 m)
Specifications Batteries
Commander: 6 AA Alkaline, Probe: 1 9 V Alkaline
Specifications Brand
VDV Commander, Klein®
Specifications Cable Type
Coaxial, Data (RJ45) and Telephone (RJ11) Cables
Specifications Commander Active Battery Life
20 h
Specifications Commander Standby Battery Life
10 y
Specifications Display Size
2.7 in | 68.58 mm
Specifications Display Type
Color

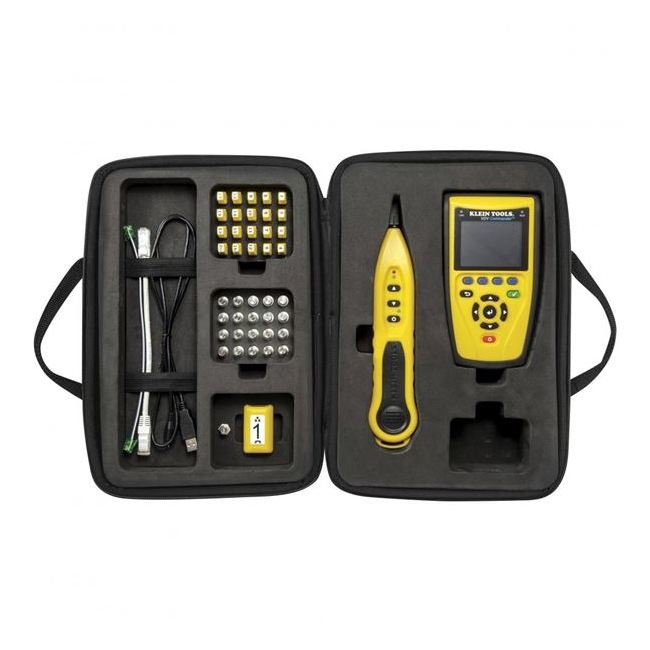

Specifications Included
Probeplus Tone Tracing Probe, Carrying Case, Remotes and Test Cables, Telephone Cables with Adapter
Specifications Location Id
20
Specifications Maximum Cable Length
Up to 1500 ft | Up to 457 m
Specifications Multiple Style Tone Generator
4
Specifications Number Of Batteries
7
Specifications Open Fault
Yes
Specifications Probe Active Battery Life
25 h
Specifications Probe Standby Battery Life
4 y
Specifications Supported Remotes
(20) F-Connector CoaxMap ID/RJ45 LanMap ID
Specifications Test Measure Types
Cable Length Measurement to 1500 ft (457 m), Miswire Fault Detection, Open Fault Detection, Power Over Ethernet Detection, Shield Detection, Short Fault Detection, Split-Pair Fault Detection
Specifications Type
Tester
Specifications Unspsc Code
41113740
Specifications Upc Code
92644582127
Specifications Weight
340 g | 12 oz
