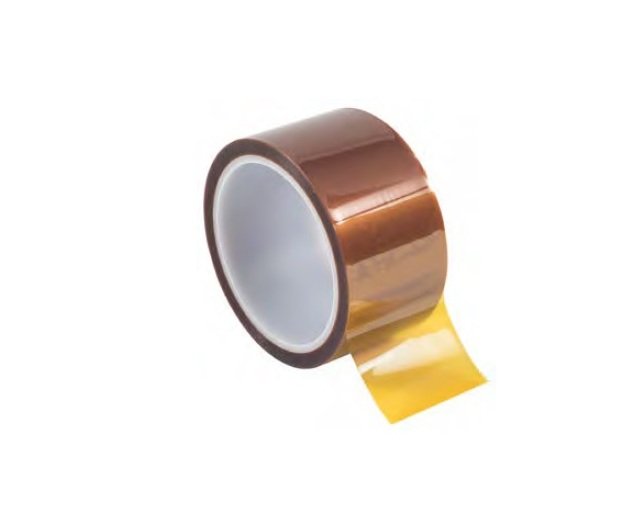

KPT-5500 Polyimide Tape - 1 Mil Thickness
KPT-5500 Polyimide Tape - 1 Mil Thickness
SKU:POL-685501
Highly reliable KPT-5500 Polyimide Tape for PCB, automotive, and aerospace industries. Meets Class H requirements with excellent thermal stability.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
KPT-5500 Polyimide Tape - 1 Mil Thickness
$29.99
Quantity: 1
Claim Your Seller Account
KPT-5500 Polyimide Tape - 1 Mil Thickness
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The KPT-5500 1 Mil Polyimide Tape is an essential component in PCB production, automotive, and aerospace applications. With a temperature rating of 500°F/260°C, it meets Class H requirements and is flame retardant. This tape offers excellent dielectric strength, chemical resistance, and conformability for uneven surfaces. Ideal for powder coating, E-Coating, wave soldering, hot air leveling, and circuit board insulation. Manufactured with a 1 mil polyimide carrier and 1.5 mil silicone adhesive, this tape ensures reliable performance in demanding environments.
Product Specifications
Specifications Case Quantity
8
Specifications Construction
1 Mil Polyimide Carrier | 1.5 Mil Silicone Adhesive | 2.5 Mil Total Thickness
Specifications Features
Temperature Rating 500 °F/260 °C Meets Class H Requirements, Flame Retardant Excellent Dielectric Strength and Chemical Resistance Very Conformable for uneven Surfaces or Irregular Shapes Used in Powder Coating, E-Coating, Wave Soldering, Hot Air Leveling, and Circuit Board Insulation
Specifications Roll Length
36 yd
Specifications Width
5.500 Inch | 139.70 mm
