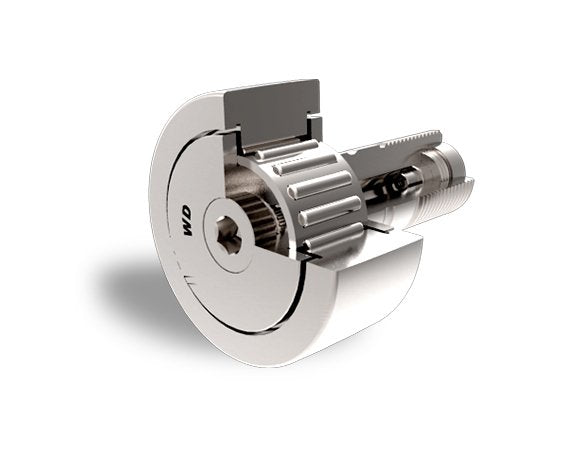

KR/NUKR Series Cam Followers
KR/NUKR Series Cam Followers
SKU:CAM-1f9745
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
KR/NUKR Series Cam Followers
$49.99
Quantity: 1
Claim Your Seller Account
KR/NUKR Series Cam Followers
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Product Specifications
Basic Load Rating Dynamic Cr Basic Load Rating
29600 kN
Basic Load Rating Static Cor Basic Load Rating
56000 kN

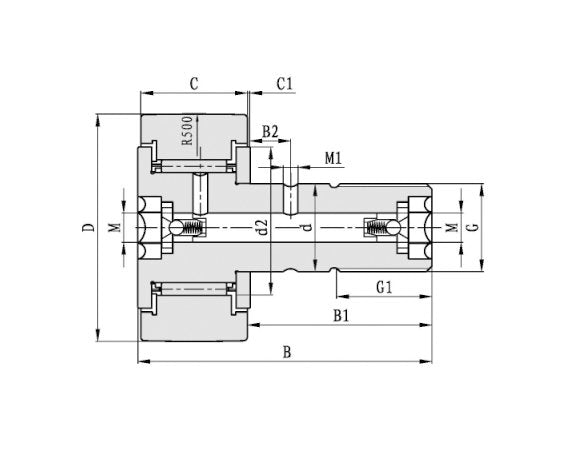

Bearing Designation Bearing Designation Dimension B3
22 mm
Bearing Designation Bearing Designation Dimension E
1 mm
Bearing Designation Bore Diameter
28 mm
Boundary Dimensions Boundary Dimension C1
0.8 mm
Boundary Dimensions Boundary Dimension D2
44 mm
Boundary Dimensions Boundary Dimension G
M24X1.5 mm
Boundary Dimensions Boundary Dimension G1
25 mm
Boundary Dimensions Boundary Dimension M
8 mm
Boundary Dimensions Boundary Dimension M1
4 mm
Inner Ring Bore Diameter
24 mm
Inner Ring Overall Bearing Width
80 mm
Outer Ring Dimension C
29 mm
Outer Ring Outside Diameter
62 mm
Specifications Dimension B1
49.5 mm
Specifications Dimension B2
11 mm
Specifications Dynamic Cr Force
31700 N
Specifications Grease Limiting Speed
1300 rpm
Specifications Mass
830.2 g
Specifications Nut Tightening Torque Ma
205 N·m
Specifications Static Cor Force
61000 N
Specifications Type
With Eccentric Collar
Thrust Ring Outer Diameter Od
62 mm
