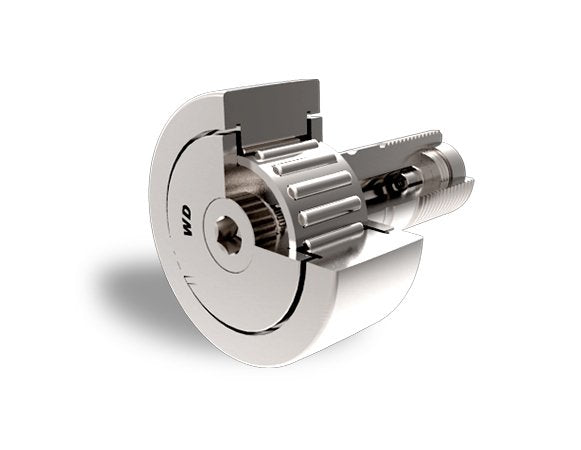

KR/NUKR Series Cam Followers
KR/NUKR Series Cam Followers
SKU:CAM-81854d
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
KR/NUKR Series Cam Followers
$49.99
Quantity: 1
Claim Your Seller Account
KR/NUKR Series Cam Followers
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

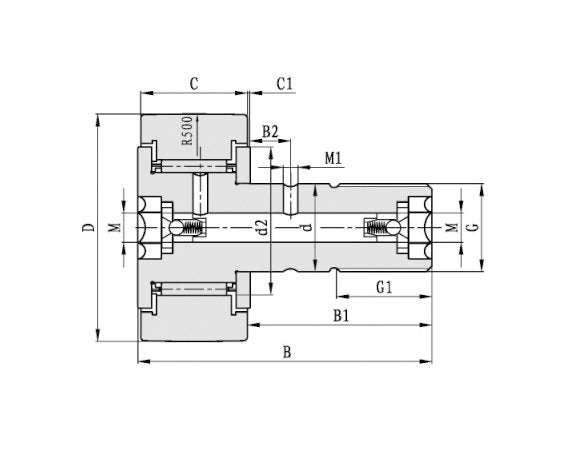

Product Specifications
Basic Load Rating Dynamic Cr Basic Load Rating
10120 kN
Basic Load Rating Static Cor Basic Load Rating
16300 kN
Bearing Designation Bearing Designation Dimension B3
14 mm
Bearing Designation Bearing Designation Dimension E
1 mm
Bearing Designation Bore Diameter
20 mm
Boundary Dimensions Boundary Dimension C1
0.8 mm
Boundary Dimensions Boundary Dimension D2
27 mm
Boundary Dimensions Boundary Dimension G
M16X1.5 mm
Boundary Dimensions Boundary Dimension G1
17 mm
Boundary Dimensions Boundary Dimension M
6 mm
Boundary Dimensions Boundary Dimension M1
3 mm
Inner Ring Bore Diameter
16 mm
Inner Ring Overall Bearing Width
52 mm
Outer Ring Dimension C
18 mm
Outer Ring Outside Diameter
35 mm
Specifications Dimension B1
32.5 mm
Specifications Dimension B2
8 mm
Specifications Dynamic Cr Force
15100 N
Specifications For Perm
16400
Specifications Fr Perm
8300
Specifications Grease Limiting Speed
4320 rpm
Specifications Mass
176.5 g
Specifications Nut Tightening Torque Ma
45.8 N·m
Specifications Static Cor Force
19980 N
Specifications Type
With Eccentric Collar
Thrust Ring Outer Diameter Od
35 mm
