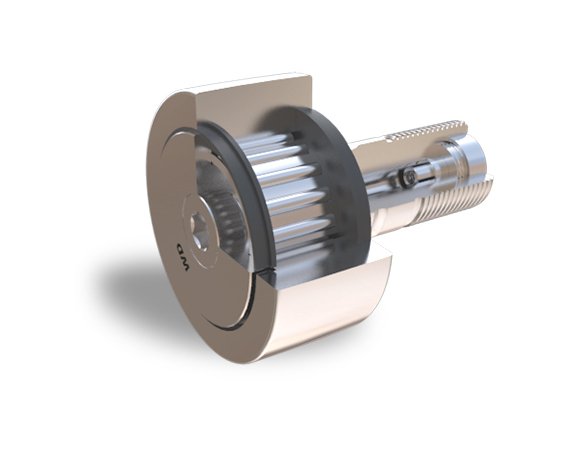

KR/NUKR Series Cam Followers
KR/NUKR Series Cam Followers
SKU:CAM-3699ed
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
KR/NUKR Series Cam Followers
$49.99
Quantity: 1
Claim Your Seller Account
KR/NUKR Series Cam Followers
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

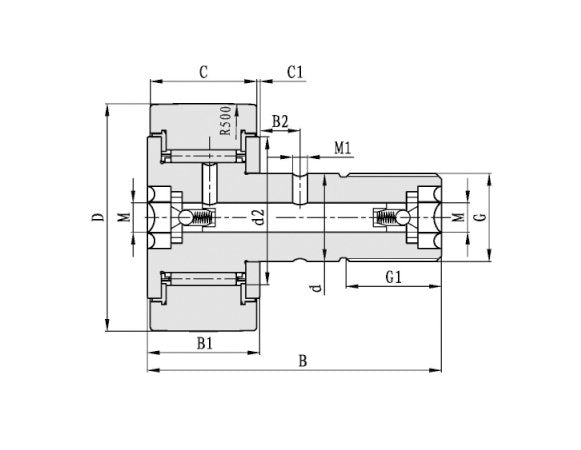

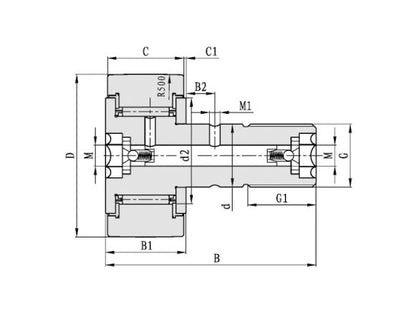

Product Specifications
Basic Load Rating Dynamic Cr Basic Load Rating
39900 kN
Basic Load Rating Static Cor Basic Load Rating
100600 kN
Bearing Designation Bearing Designation Dimension B3
29 mm
Bearing Designation Bearing Designation Dimension E
1.5 mm
Bearing Designation Bore Diameter
35 mm
Boundary Dimensions Boundary Dimension C1
1 mm
Boundary Dimensions Boundary Dimension D2
53 mm
Boundary Dimensions Boundary Dimension G
M30X1.5 mm
Boundary Dimensions Boundary Dimension G1
32 mm
Boundary Dimensions Boundary Dimension M
8 mm
Boundary Dimensions Boundary Dimension M1
4 mm
Inner Ring Bore Diameter
30 mm
Inner Ring Overall Bearing Width
100 mm
Outer Ring Dimension C
35 mm
Outer Ring Outside Diameter
80 mm
Specifications Dimension B1
63 mm
Specifications Dimension B2
15 mm
Specifications Dynamic Cr Force
46000 N
Specifications Grease Limiting Speed
1000 rpm
Specifications Mass
1621 g
Specifications Nut Tightening Torque Ma
351 N·m
Specifications Static Cor Force
102000 N
Specifications Type
With Eccentric Collar
Thrust Ring Outer Diameter Od
80 mm
