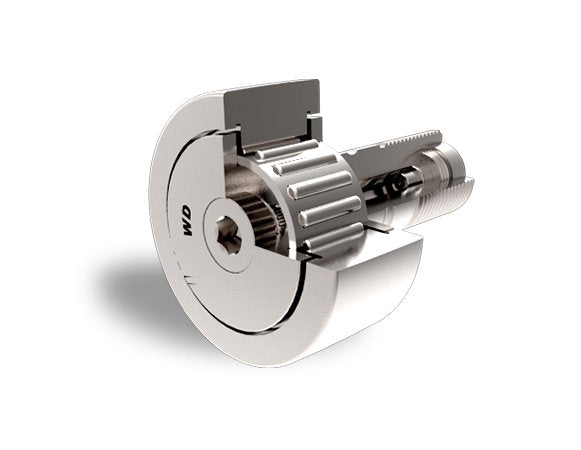

KR/NUKR Series Cam Followers
KR/NUKR Series Cam Followers
SKU:CAM-f8d79d
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
KR/NUKR Series Cam Followers
$49.99
Quantity: 1
Claim Your Seller Account
KR/NUKR Series Cam Followers
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

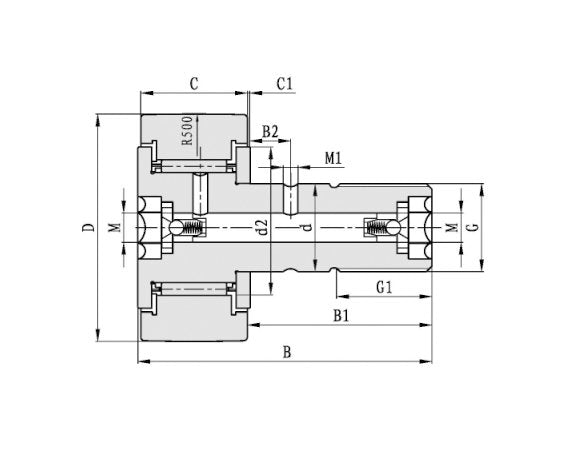

Product Specifications
Basic Load Rating Dynamic Cr Basic Load Rating
5320 kN
Basic Load Rating Static Cor Basic Load Rating
8900 kN
Bearing Designation Bearing Designation Dimension B3
10 mm
Bearing Designation Bearing Designation Dimension E
0.5 mm
Bearing Designation Bore Diameter
13 mm
Boundary Dimensions Boundary Dimension C1
0.6 mm
Boundary Dimensions Boundary Dimension D2
17 mm
Boundary Dimensions Boundary Dimension G
M10X1 mm
Boundary Dimensions Boundary Dimension G1
12 mm
Boundary Dimensions Boundary Dimension M
4 mm
Inner Ring Bore Diameter
10 mm
Inner Ring Overall Bearing Width
36 mm
Outer Ring Dimension C
12 mm
Outer Ring Outside Diameter
26 mm
Specifications Dimension B1
23 mm
Specifications Dynamic Cr Force
6600 N
Specifications Grease Limiting Speed
4300 rpm
Specifications Mass
65.3 g
Specifications Nut Tightening Torque Ma
12.5 N·m
Specifications Static Cor Force
9900 N
Specifications Type
With Eccentric Collar
Thrust Ring Outer Diameter Od
26 mm
