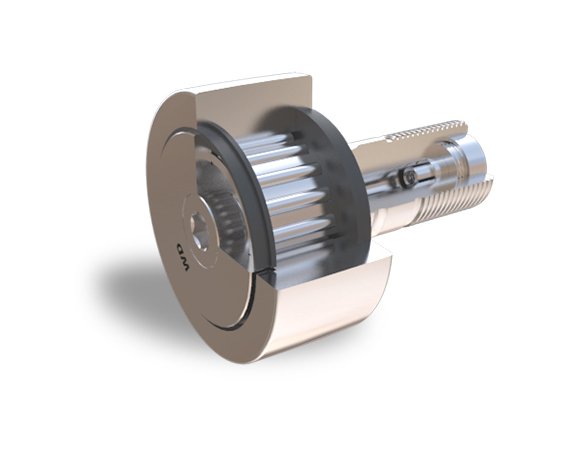

KR/NUKR Series Cam Followers
KR/NUKR Series Cam Followers
SKU:CAM-2c04fb
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
KR/NUKR Series Cam Followers
$49.99
Quantity: 1
Claim Your Seller Account
KR/NUKR Series Cam Followers
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Product Specifications
Basic Load Rating Dynamic Cr Basic Load Rating
8000 kN
Basic Load Rating Static Cor Basic Load Rating
11800 kN

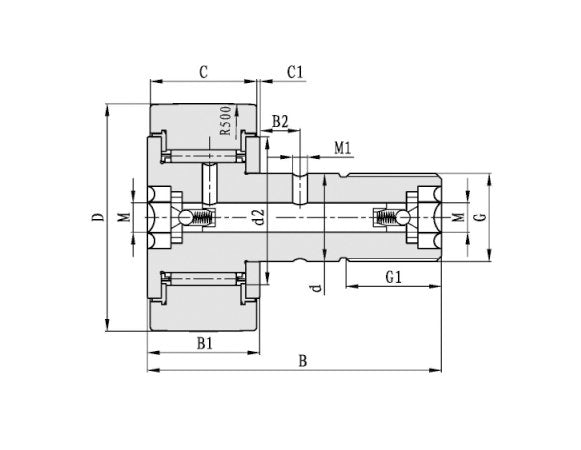

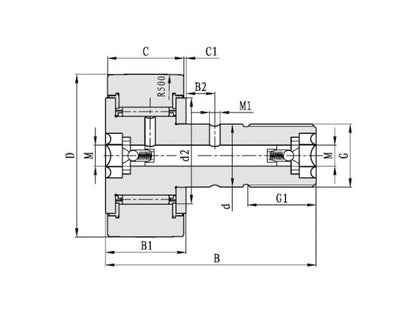

Bearing Designation Bearing Designation Dimension B3
11 mm
Bearing Designation Bearing Designation Dimension E
0.5 mm
Bearing Designation Bore Diameter
15 mm
Boundary Dimensions Boundary Dimension C1
0.6 mm
Boundary Dimensions Boundary Dimension D2
23 mm
Boundary Dimensions Boundary Dimension G
M12X1.5 mm
Boundary Dimensions Boundary Dimension G1
13 mm
Boundary Dimensions Boundary Dimension M
6 mm
Boundary Dimensions Boundary Dimension M1
3 mm
Inner Ring Bore Diameter
12 mm
Inner Ring Overall Bearing Width
40 mm
Outer Ring Dimension C
14 mm
Outer Ring Outside Diameter
32 mm
Specifications Dimension B1
25 mm
Specifications Dimension B2
6 mm
Specifications Dynamic Cr Force
8220 N
Specifications Grease Limiting Speed
3220 rpm
Specifications Mass
105.5 g
Specifications Nut Tightening Torque Ma
18.2 N·m
Specifications Static Cor Force
12600 N
Specifications Type
With Eccentric Collar
Thrust Ring Outer Diameter Od
32 mm
