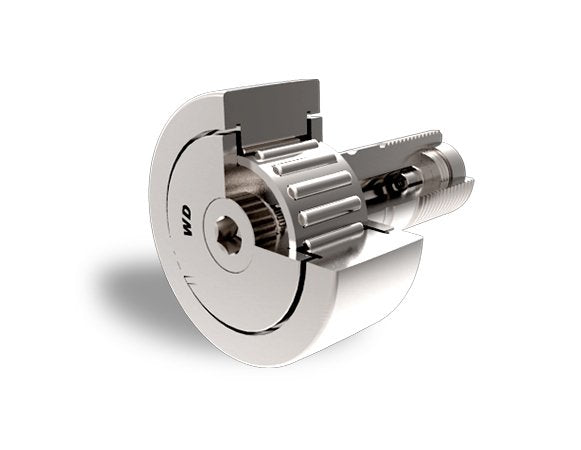

KR/NUKR Series Cam Followers
KR/NUKR Series Cam Followers
SKU:CAM-505b2f
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
KR/NUKR Series Cam Followers
$49.99
Quantity: 1
Claim Your Seller Account
KR/NUKR Series Cam Followers
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

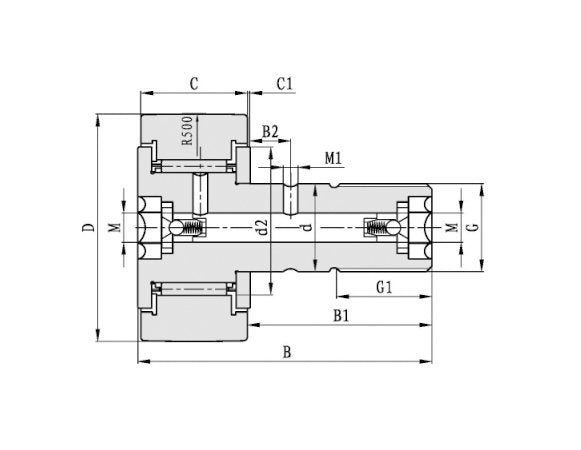

Product Specifications
Boundary Dimensions Boundary Dimension C1
0.8 mm
Boundary Dimensions Boundary Dimension D2
38 mm
Boundary Dimensions Boundary Dimension G
M24X1.5 mm
Boundary Dimensions Boundary Dimension G1
25 mm
Boundary Dimensions Boundary Dimension M
8 mm
Boundary Dimensions Boundary Dimension M1
4 mm
Inner Ring Bore Diameter
24 mm
Inner Ring Overall Bearing Width
80 mm
Outer Ring Dimension C
29 mm
Outer Ring Outside Diameter
62 mm
Specifications Dimension B1
49.5 mm
Specifications Dimension B2
11 mm
Specifications Mass
823.5 g
Specifications Type
With Eccentric Collar
Thrust Ring Outer Diameter Od
62 mm
